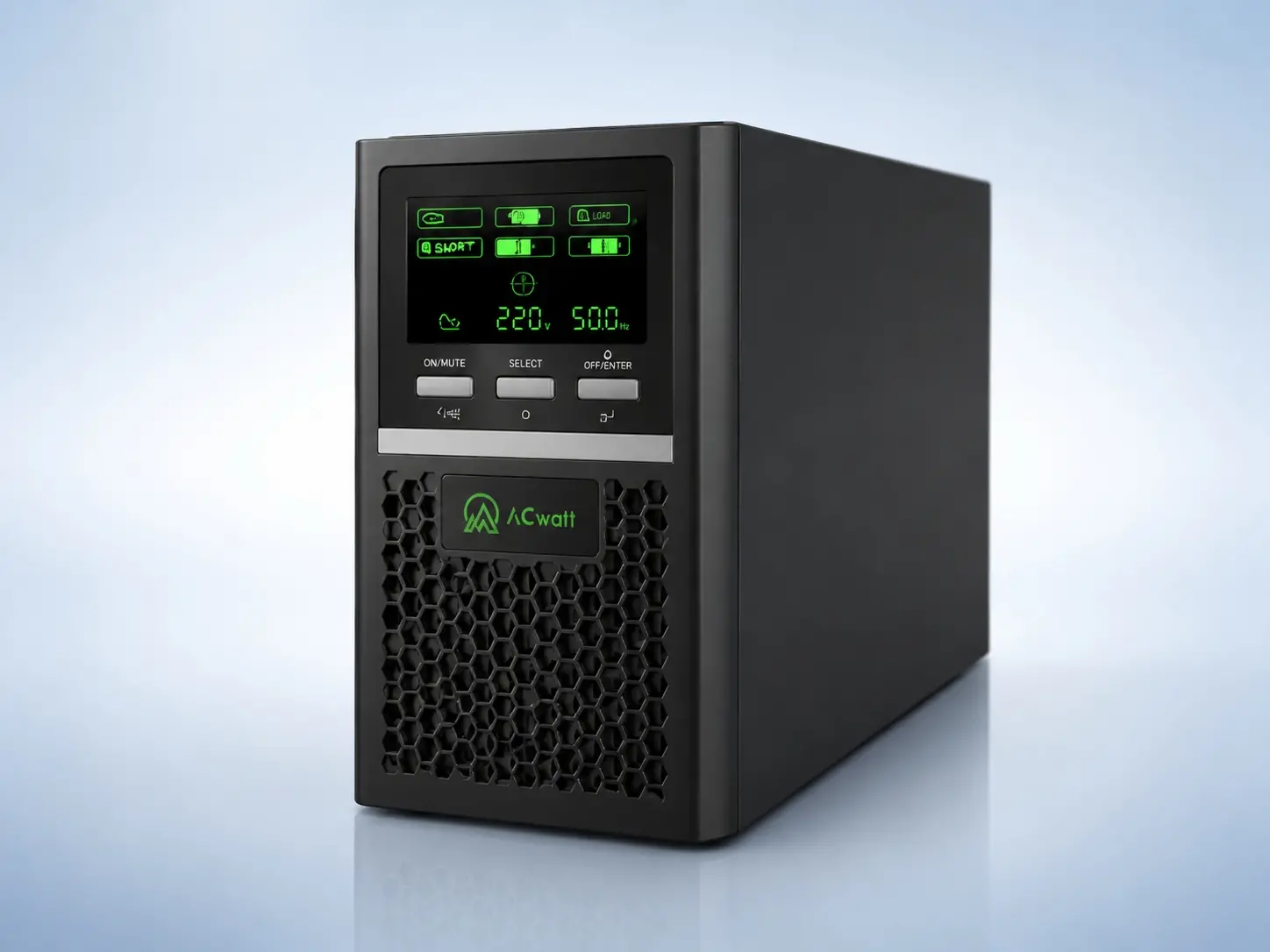

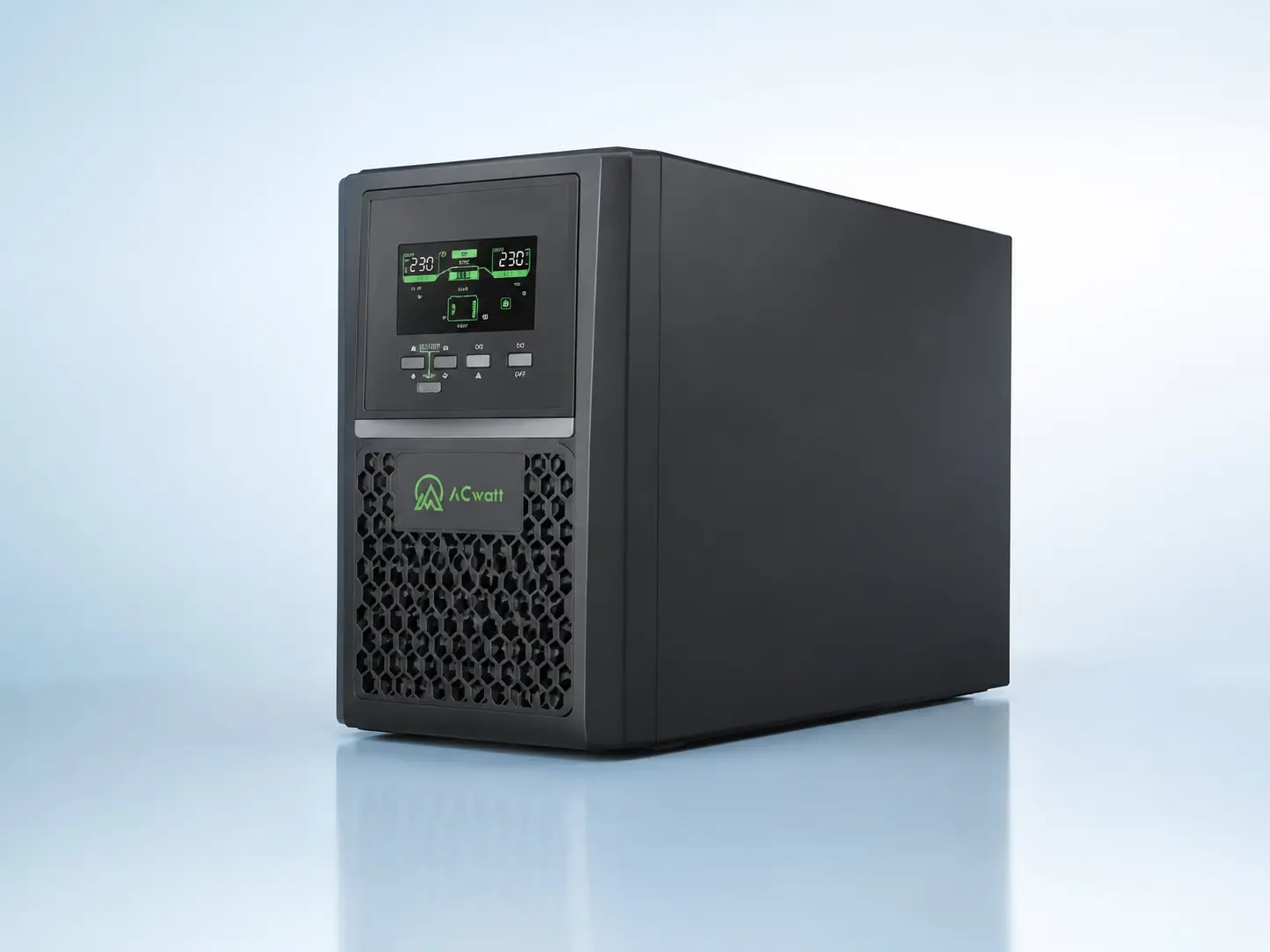

ACS Series 1~3kVA online Tower UPS
ACS Series 1–3kVA Online Tower UPS is a compact single-phase online UPS designed to deliver continuously regulated sine-wave power for servers, network devices, communication systems, and other sensitive equipment.
Full active power: The series covers 1–3kVA with output power factor 1.0.
Wide input range: The UPS operates from 110–300Vac, with 176–264Vac at full load.
Flexible backup options: Standard models use internal sealed VRLA batteries, while long-backup versions support external battery packs and adjustable charging.
Intelligent monitoring: LCD, RS232, optional USB/SNMP, EPO and optional BMS communication support local and remote management.
Final selection depends on rated capacity, standard or long-backup design, battery voltage, required runtime, outlet type and project requirements.
Applications
Education

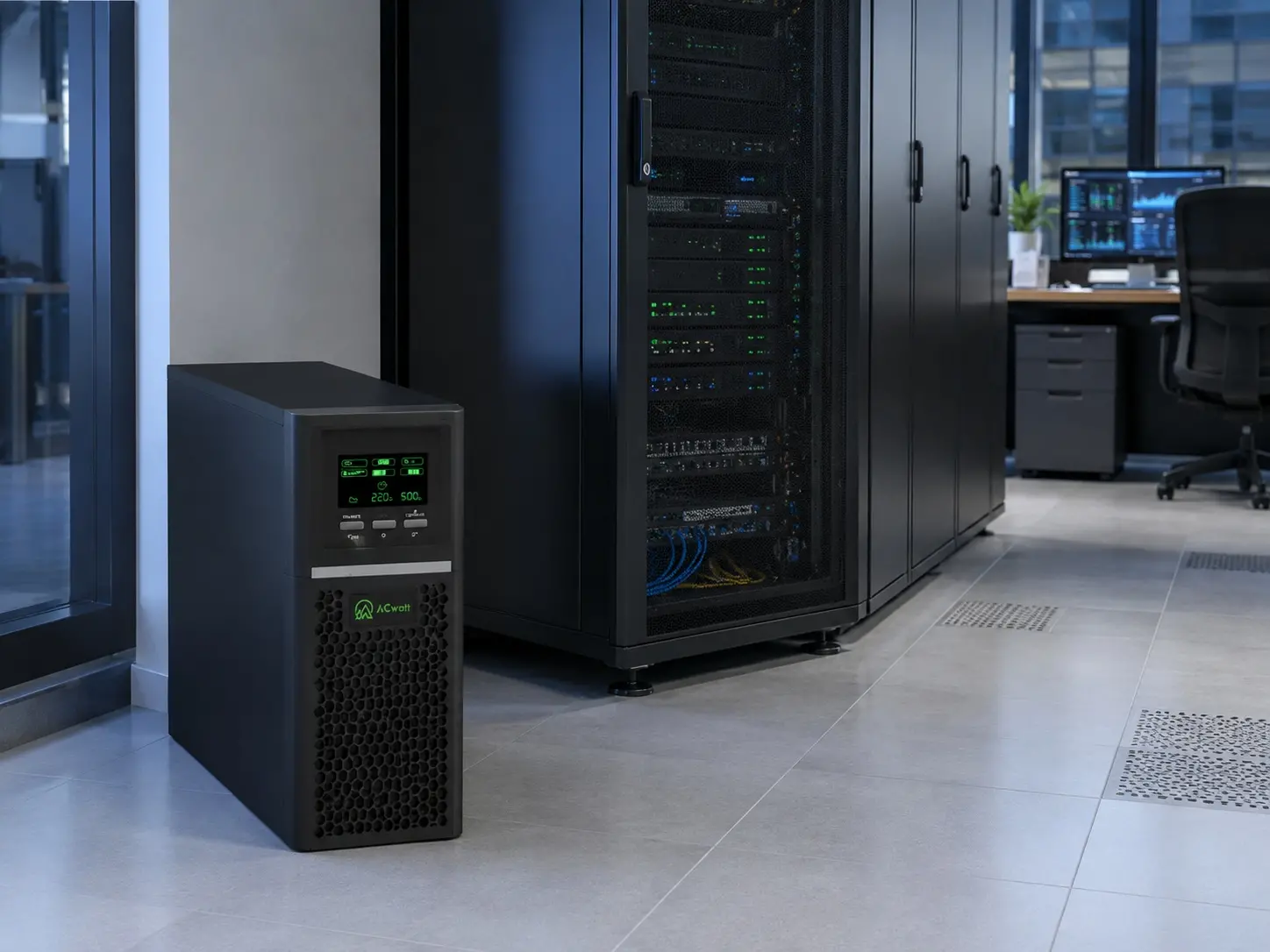

Data Center
Telecommunications
Industrail
Finance
Data Parameters
Technical Specifications
| Model / Mechanical Configuration | |||
| Capacity | Backup Type | Battery | Mechanical Size |
|---|---|---|---|
| 1kVA | Standard / Long Backup | 2–3 internal 7/9Ah or external battery | 144 × 355 × 226 mm |
| 1.5kVA | Model-dependent | 3 × 9Ah / project configuration | 144 × 398 × 223 mm |
| 2kVA | Standard | 4–6 internal 7/9Ah | 190 × 400 × 328 mm |
| 2kVA | Long Backup | External battery | 144 × 398 × 223 mm |
| 3kVA | Standard | 6–8 internal 7/9Ah | 190 × 400 × 328 mm |
| 3kVA | Long Backup | External battery | 144 × 398 × 223 mm |
| AC Input | |
| Input Phase | Single phase |
| Input Voltage Range | 110–300 Vac |
| Full-Load Input Range | 176–264 Vac |
| Rated Frequency | 50 / 60 Hz |
| Input Power Factor | >0.99 at full load |
| AC Output | |
| Rated Capacity | 1 / 1.5 / 2 / 3kVA |
| Rated Output Voltage | 200 / 208 / 220 / 230 / 240 Vac |
| Output Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Frequency Tolerance | ±0.5% of nominal |
| Output Distortion | THD<2% at full linear load; <5% at full non-linear load |
| Overload Capability | 102–110% for 30 min; 110–125% for 10 min; 125–150% for 30 s |
| Crest Factor | 3:1 maximum |
| Battery and Charger | |
| Battery Type | Sealed VRLA lead-acid |
| 1kVA Battery Voltage | 24 / 36 Vdc standard; 36 Vdc long-backup |
| 1.5kVA Battery Voltage | 36 Vdc |
| 2kVA Battery Voltage | 48 / 72 Vdc |
| 3kVA Battery Voltage | 72 / 96 Vdc |
| Standard Charger | 1A |
| Long-Backup Charger | Adjustable 1–12A |
| Monitoring and Communication | |
| Display | LCD with input, output, battery, load, temperature and alarm information |
| Standard Communication | RS232 and EPO |
| Optional Communication | USB, intelligent slot, SNMP and dry contacts |
| Protocols | Modbus / RTU; BMS protocol available through RS485 when configured |
| Operating Modes | Normal, bypass, battery and ECO modes |
| Environment and Standards | |
| Operating Temperature | 0–40°C |
| Relative Humidity | <95%, non-condensing |
| Operating Altitude | Below 1000 m without derating |
| Storage Temperature | -20–70°C |
| Protection Level | IP20 |
| Standards | IEC/EN 62040-1, IEC/EN 62040-2 Class C2, IEC/EN 62040-3 |
