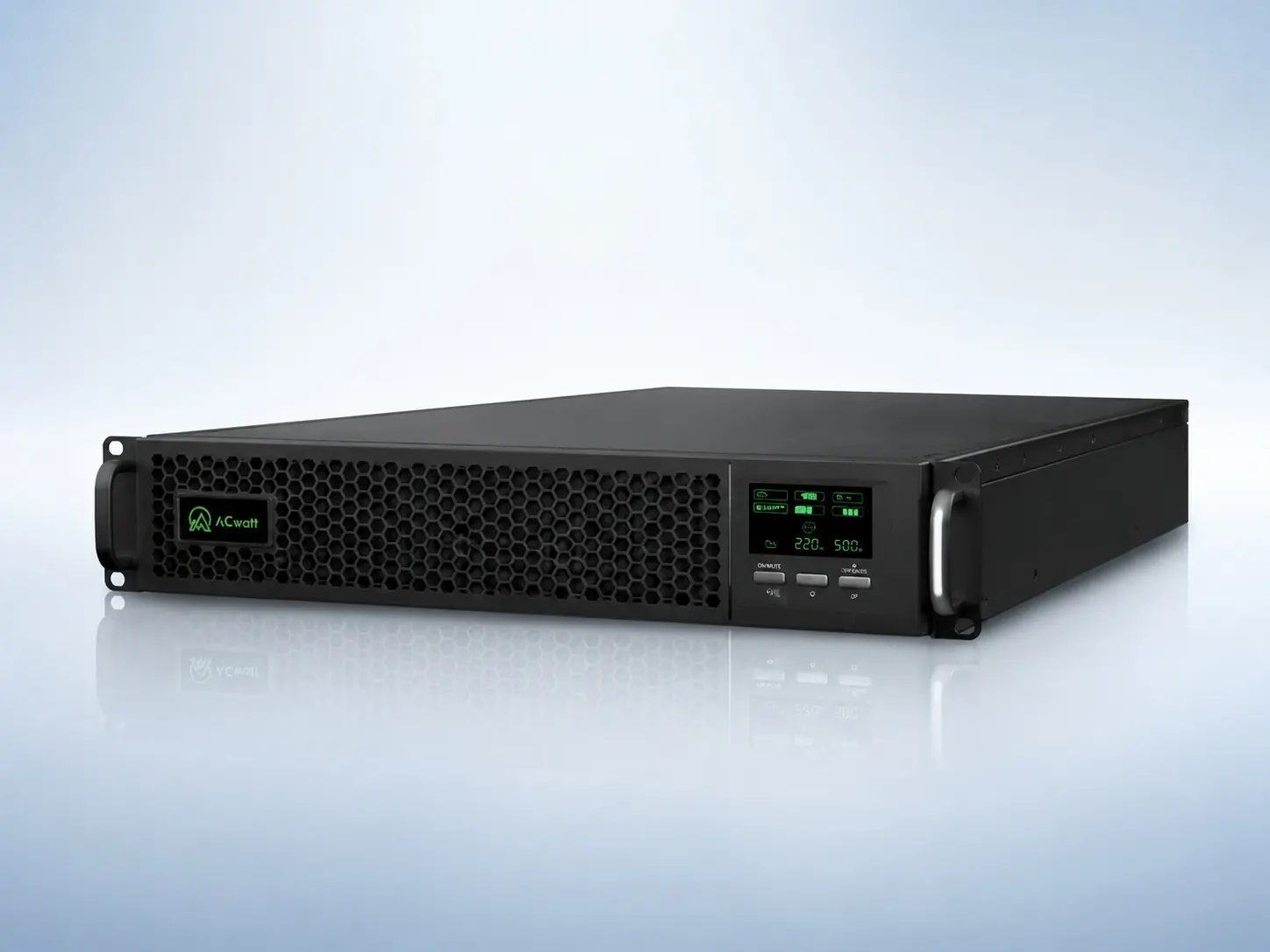

ACS-Li Series 1–3kVA Online Rack UPS
ACS-Li Series 1–3kVA Online Rack UPS is a compact rack-mounted lithium UPS designed for servers, network systems, communication equipment, and other critical rack applications requiring clean online power.
Compact rack format: The series provides 1–3kVA capacities in compact rack chassis.
Lithium battery integration: Internal lithium batteries reduce battery footprint, while long-backup versions support external battery systems and adjustable charging.
Full active power: Output power factor of 1.0 provides full usable kW capacity.
Flexible communication: LCD monitoring, RS232, optional USB/SNMP, intelligent slot, EPO, Modbus/RTU and optional RS485 BMS communication support centralized management.
Final selection depends on rack space, AC voltage platform, rated capacity, lithium battery configuration, BMS communication, runtime and project requirements.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| Rack Configuration | |||
| Capacity | Backup Type | Battery | Mechanical Size |
|---|---|---|---|
| 1kVA | Standard / Long Backup | Internal or external lithium battery | 440 × 450 × 86 mm |
| 2kVA | Standard | Internal lithium battery | 440 × 590 × 86 mm |
| 2kVA | Long Backup | External lithium battery | 440 × 450 × 86 mm |
| 3kVA | Standard | Internal lithium battery | 440 × 590 × 86 mm |
| 3kVA | Long Backup | External lithium battery | 440 × 450 × 86 mm |
| AC Input | |
| Input Phase | Single phase |
| AC Voltage Platforms | 55–155 Vac or 110–288 Vac, depending on selected model |
| Full-Load Input Range | 90–155 Vac or 176–288 Vac, depending on selected model |
| Rated Frequency | 50 / 60 Hz |
| Input Power Factor | >0.99 at full load |
| AC Output | |
| Rated Capacity | 1 / 2 / 3kVA |
| Output Voltage Options | 100 / 110 / 115 / 120 / 125 Vac or 200 / 208 / 220 / 230 / 240 Vac, depending on model |
| Output Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Frequency Tolerance | ±0.5% of nominal |
| Output Distortion | THD<2% at full linear load; <5% at full non-linear load |
| Overload Capability | 102–110% for 30 min; 110–125% for 10 min; 125–150% for 30 s |
| Crest Factor | 3:1 maximum |
| Lithium Battery and Charger | |
| Battery Platform | Internal lithium battery for standard models; external lithium battery for long-backup models |
| 1kVA Battery Voltage | 25.6 / 38.4 Vdc standard; 25.6 Vdc long-backup |
| 2kVA Battery Voltage | 76.8 Vdc standard; 51.2 Vdc long-backup |
| 3kVA Battery Voltage | 76.8 / 102.4 Vdc standard; 76.8 Vdc long-backup |
| Standard Charger | 4A |
| Long-Backup Charger | Adjustable 1–12A |
| BMS Communication | RS485 BMS communication supported when configured |
| Monitoring and Communication | |
| Display | LCD with input, output, battery, load, temperature and alarm information |
| Standard Communication | RS232 and EPO |
| Optional Communication | USB, intelligent slot, SNMP and dry contacts |
| Protocols | Modbus / RTU / BMS settings available through the communication menu |
| Operating Modes | Normal, bypass, battery and ECO modes |

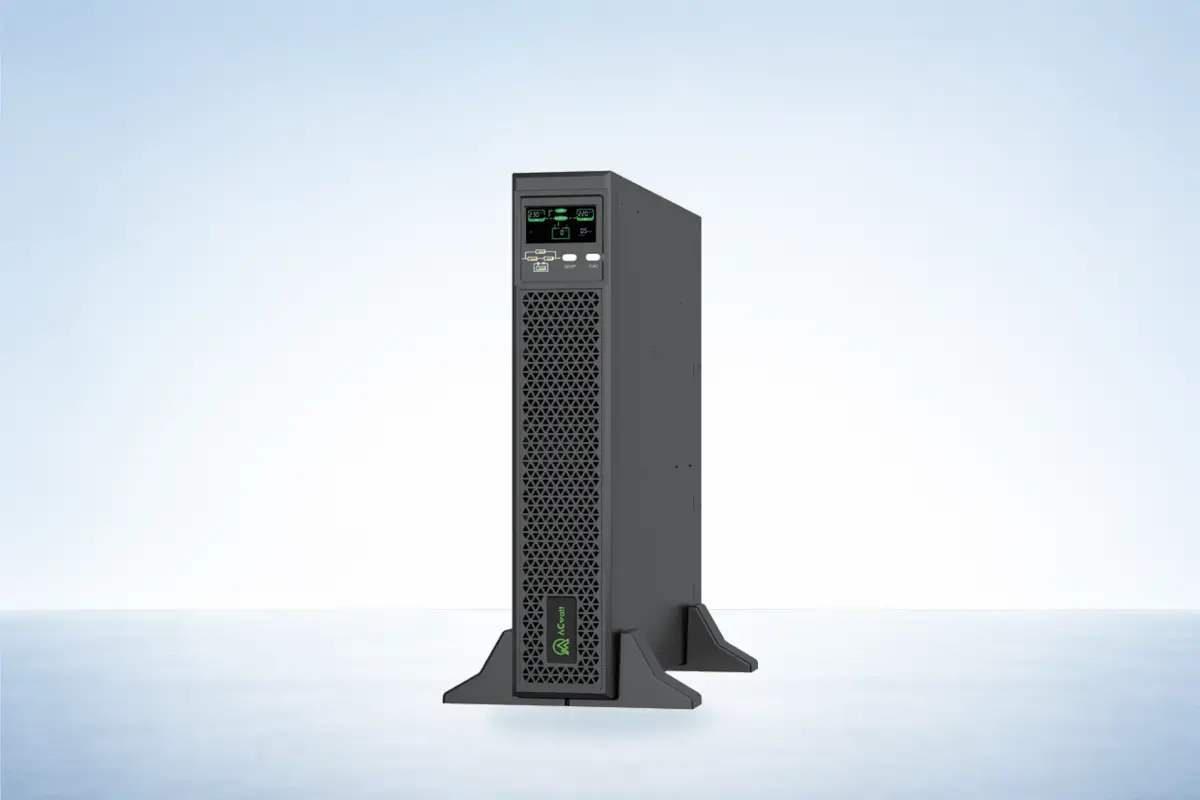

| Installation | Rack installation; rack-tower chassis can also be positioned vertically using support bases |
| Environment and Standards | |
| Operating Temperature | 0–40°C |
| Relative Humidity | <95%, non-condensing |
| Operating Altitude | Below 1000 m without derating |
| Storage Temperature | -20–70°C |
| Protection Level | IP20 |
| Noise | Approximately 45 dB at 1kVA and 50 dB at 2–3kVA |
| Standards | IEC/EN 62040-1, IEC/EN 62040-2 Class C2, IEC/EN 62040-3 |
