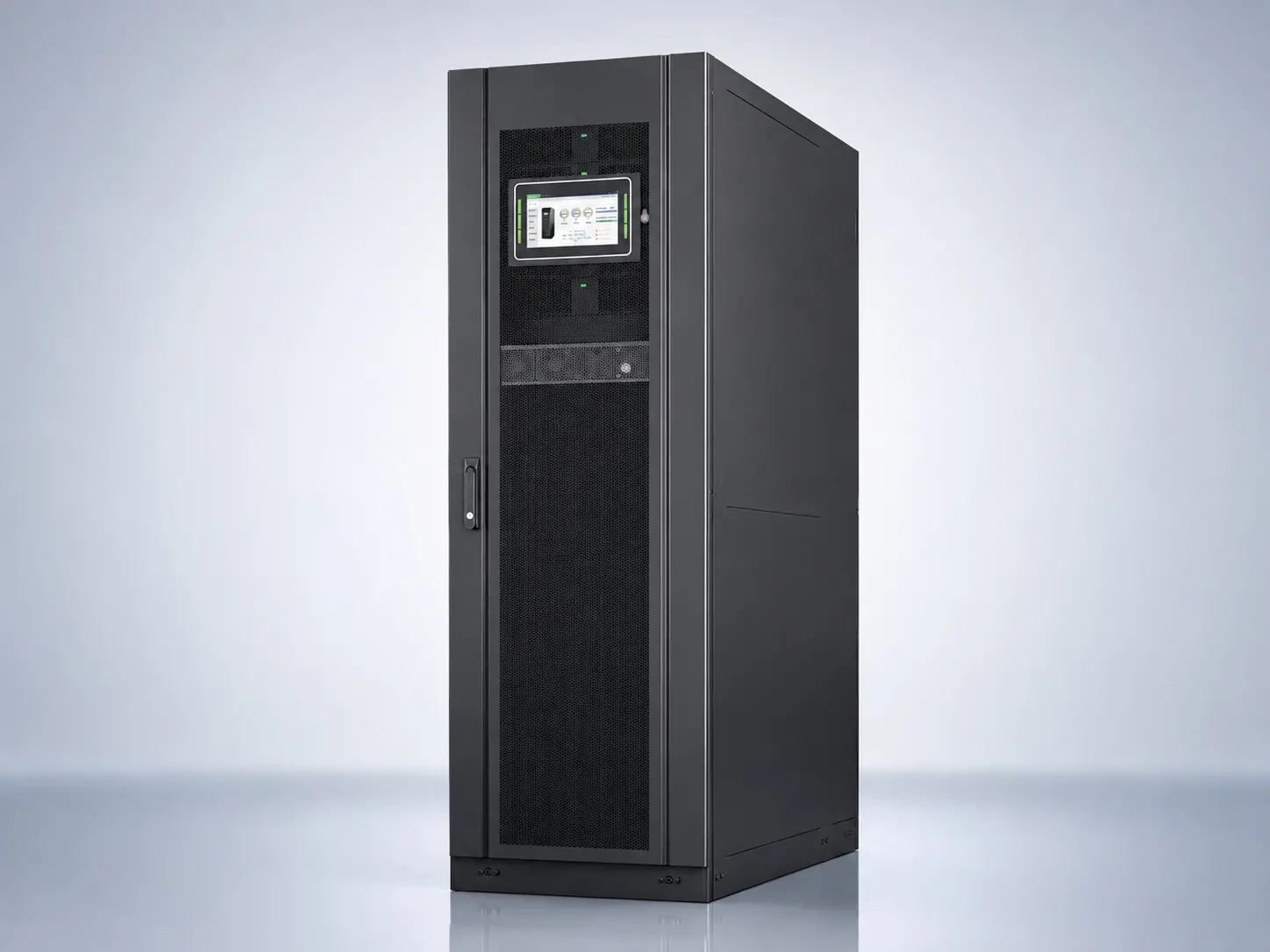

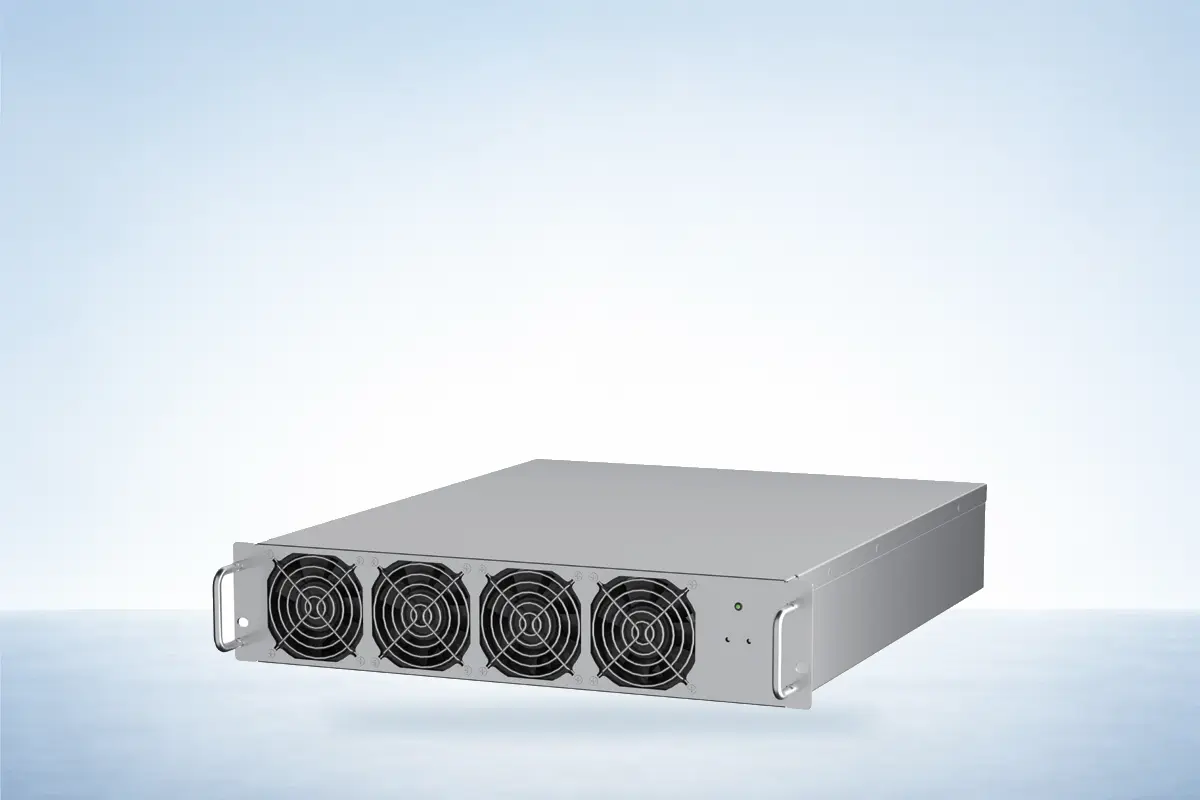

ACM Series 10–180kVA Modular UPS

Product Overview

ACM Series 10–180kVA Modular UPS is a compact online double-conversion UPS for data centers, server rooms, telecom and other critical power applications.

Flexible configuration:Supports 3P/3P and 3P/1Ppower configurations for different load requirements.

High power density:Up to 30kW in 2U, reducing installation space and simplifying maintenance.

High efficiency:Up to 97%normal-mode efficiency, input PF >0.99and THDi <2%.

Flexible battery charging:Charging capacity up to 50% × Pout, supporting demanding backup-power applications.

Smart monitoring:USB, RS232, RS485 and dry contacts, with optional SNMP, AS400 and parallel kit.

Configuration Note: Power module, battery voltage and cabinet configuration vary by model. Confirm the final system according to load, redundancy and backup-time requirements.

Applications

Data Center

Telecommunications

Industrial

Finance

Healthcare

Data Parameters

MOD10E, MOD20E, MOD25E and MOD30E UPS Series Technical Specifications: AC020/10E, AC040/10E, AC060/10E, AC040/20E, AC080/20E, AC120/20E, AC050/25E, AC100/25E, AC150/25E, AC120/30E and AC180/30E.
Model		MOD10E			MOD20E			MOD25E			MOD30E
Model		AC020/10E	AC040/10E	AC060/10E	AC040/20E	AC080/20E	AC120/20E	AC050/25E	AC100/25E	AC150/25E	AC120/30E	AC180/30E
Rate Power		20kVA	40kVA	60kVA	40kVA	80kVA	120kVA	50kVA	100kVA	150kVA	120kVA	180kVA
Main Input	Input	3P5W (3P+N+PE)
	Rate Voltage	380/400/415VAC (L-L)
	Rate Freq.	50/60Hz
	Input PF	>0.99
	Current distortion	THDi<2% (100% Linear load)
	Voltage range	304-478VAC (L-L) full load; 304-228VAC (L-L) power derate from 100% to 50%									324-478VAC (L-L) full load; 324-228VAC (L-L) power derate from 100% to 50%
	Freq. range	40-70Hz
Battery	Rate voltage	±120VDC (default 20pcs, 20-50pcs selected)			±240VDC (default 40pcs, 30-50pcs selected)
	Charging capacity	50%*Pout (Limited by input current)
	Charging accuracy	±1%
Bypass	Rate voltage	380/400/415VAC (L-L)
	Voltage range	Range: -40% ~ +25%, Settable, default -20% ~ +15%
	Overload	110%, long time operation; 110%<load<125%, 10 mins; 125%<load<150%, 1 min
Inverter	Rate voltage	380/400/415VAC (L-L)
	Rate Freq.	50/60Hz
	Output PF	1
	Voltage accuracy	±1.0%
	Output THDu	<1% (linear load), <5% (non-linear load according to IEC 62040-3)
	Overload	110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms
	Frequency accuracy	0.1%
	Synchronize window	Settable, ±0.5Hz ~ ±5Hz, default ±3Hz
	Slew rate	Settable, 0.5Hz/s ~ 3Hz/s, default 0.5Hz/s
	Phase Accuracy	120°±0.5°
System	Efficiency-normal mode	Up to 97%
	Display	LED + 7 inch touch LCD
	Certification-Safety	IEC62040-1, IEC60950-1
	Certification-EMC	IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)
	IP degree	IP20
	Configuration	USB, RS232, RS485, Dry contact, Cold start, Air filter, Ethernet port						USB, RS232, RS485, Dry contact, Cold start, Air filter
	Option	SNMP card, AS400 card, SFD, Parallel kit
	Environment	0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing)
	Noise(dB)(1 meter)	65dB @ 100% load, 62dB @ 45% load
Module	Dimension (WDH)mm	40049585
Module	Weight(kg)	13.85
Cabinet		2-Slots			4-Slots (10kVA power module)		4-Slots			6-Slots
Dimension (WDH)mm	Body dimension (Wheels not included)	AC020/10E / AC040/20E / AC050/25E 442711307 (7U)			AC040/10E 442710485 (11U)		AC080/20E / AC100/25E / AC120/30E 442661705 (16U)			AC060/10E / AC120/20E / AC150/25E / AC180/30E 442861908 (20U)
Dimension (WDH)mm	MAX dimension	442751397			442751575		442841797			442841978
Weight(kg) Cabinet		39			52		64			88
