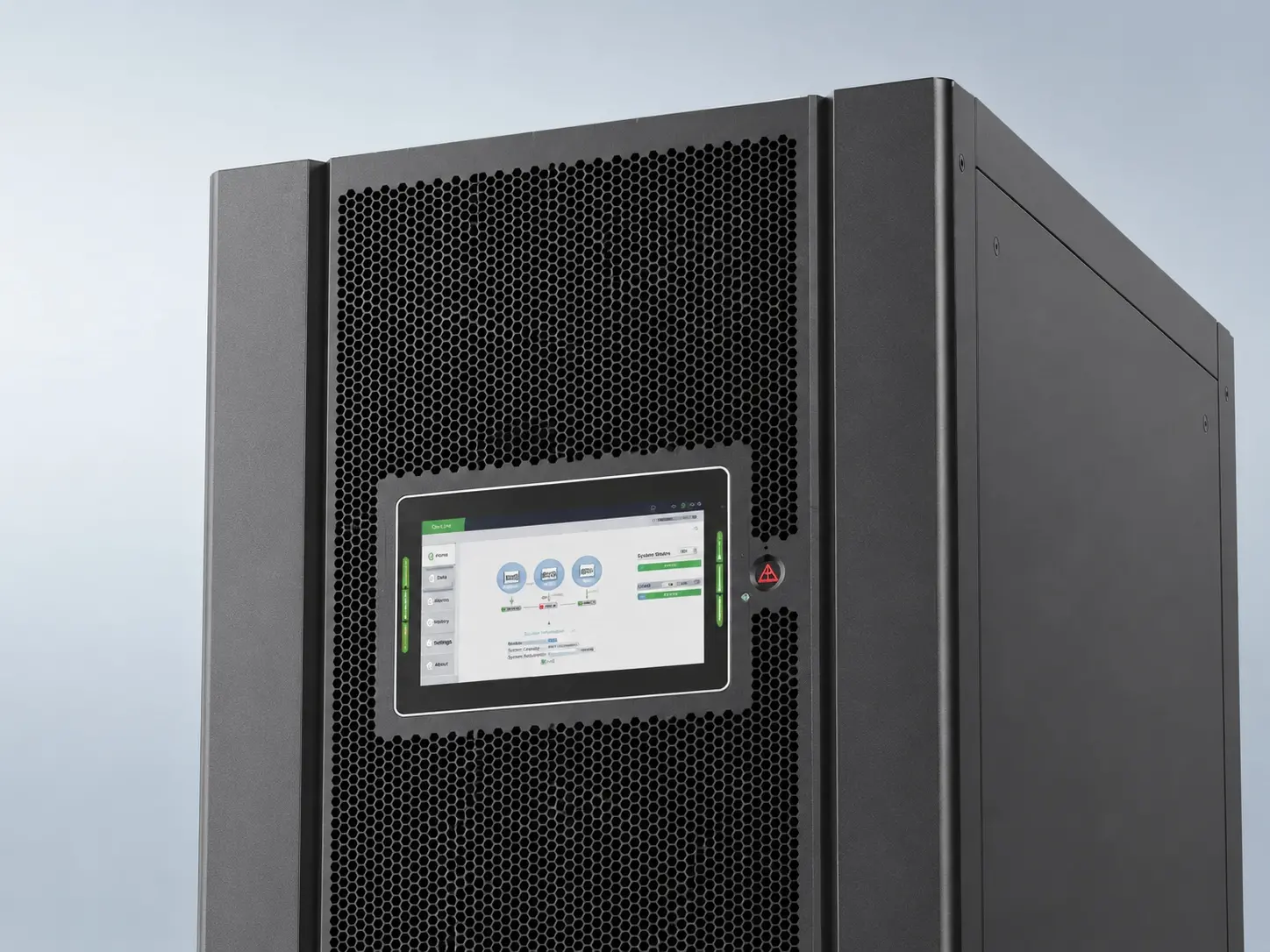

ACM Series 10–300 kVA Modular UPS
Product Overview
10–300kVA Modular UPS is a scalable online double-conversion UPS for data centers, telecom networks and other mission-critical applications.
Scalable design:Flexible capacity from 10 to 300kVAwith modular expansion and redundancy.
High efficiency:Up to 95.7%online efficiency and 99%in ECO mode.
Strong overload capacity:110% load for 1 hour, 125% for 10 minutes and 150% for 1 minute.
Smart monitoring:Supports RS232, RS485, USB, EPO, dry contacts and intelligent communication interfaces.

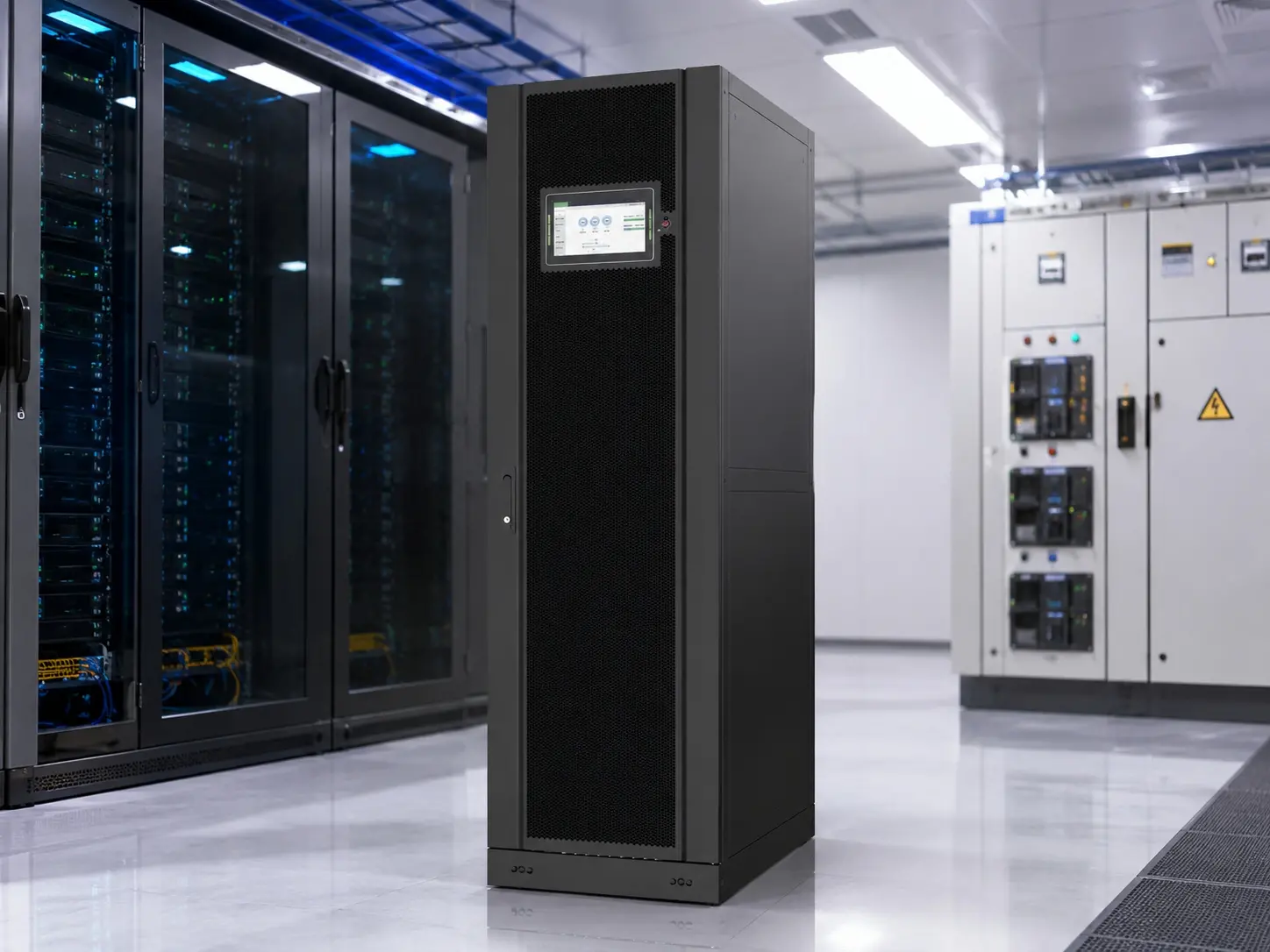

Ideal for data centers, server rooms, telecom and critical power systems.
Applications
Data Center
Health Care
Finance
Telecommunications
Industrial
Data Parameters
| Model | AC100/10E | AC200/20E | AC250/25E | AC300/30E | |
|---|---|---|---|---|---|
| Rate Power | 100kVA | 200kVA | 250kVA | 300kVA | |
| Main Input | Input | 3P5W (3P+N+PE) | |||
| Rate Voltage | 380/400/415VAC (L-L) | ||||
| Rate Freq. | 50/60Hz | ||||
| Input PF | >0.99 | ||||
| Current distortion | THDi<2% (100% Linear load) | ||||
| Voltage range | MOD10-25E: 304-478VAC (L-L) full load; 304-228VAC (L-L) power derate from 100% to 50% | MOD30E: 324-478VAC (L-L) full load; 324-228VAC (L-L) power derate from 100% to 50% | |||
| Freq. range | 40-70Hz | ||||
| Battery | Rate voltage | ±240VDC (default 40pcs, 30-50pcs selected) | |||
| Charging capacity | 50%*Pout (Limited by input current) | ||||
| Charging accuracy | ±1% | ||||
| Bypass | Rate voltage | 380/400/415VAC (L-L) | |||
| Voltage range | Range: -40% ~ +25%, Settable, default -20% ~ +15% | ||||
| Overload | 110%, long time operation; 110%<load<125%, 10 mins; 125%<load<150%, 1 min | ||||
| Inverter | Rate voltage | 380/400/415VAC (L-L) | |||
| Rate Freq. | 50/60Hz | ||||
| Output PF | 1 | ||||
| Voltage accuracy | ±1.0% | ||||
| Output THDu | <1% (linear load); <5% (non-linear load according to IEC 62040-3) | ||||
| Overload | 110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms | ||||
| Frequency accuracy | 0.1% | ||||
| Synchronize window | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz | ||||
| Slew rate | Settable, 0.5Hz/s ~ 3Hz/s, default 0.5Hz/s | ||||
| Phase Accuracy | 120°±0.5° | ||||
| System | Efficiency-normal mode | Up to 97% | |||
| Display | LED + 7 inch touch LCD | ||||
| Certification-Safety | IEC62040-1, IEC60950-1 | ||||
| Certification-EMC | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) | ||||
| IP degree | IP20 | ||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start, Air filter, Ethernet port | ||||
| Option | SNMP card, AS400 card, SFD, Parallel kit | ||||
| Environment | 0-40℃ (operation); -25℃-70℃ (storage); 0-95% (Humidity, non-condensing) | ||||
| Noise(dB)(1 meter) | 65dB @ 100% load, 62dB @ 45% load | ||||
| Module | Dimension (W*D*H)mm | 400*495*86 | |||
| Weight(kg) | 13.85 | ||||
| Cabinet | Dimension (W*D*H)mm | 600*850*2000 | |||
| Weight(kg) | 220 | ||||
