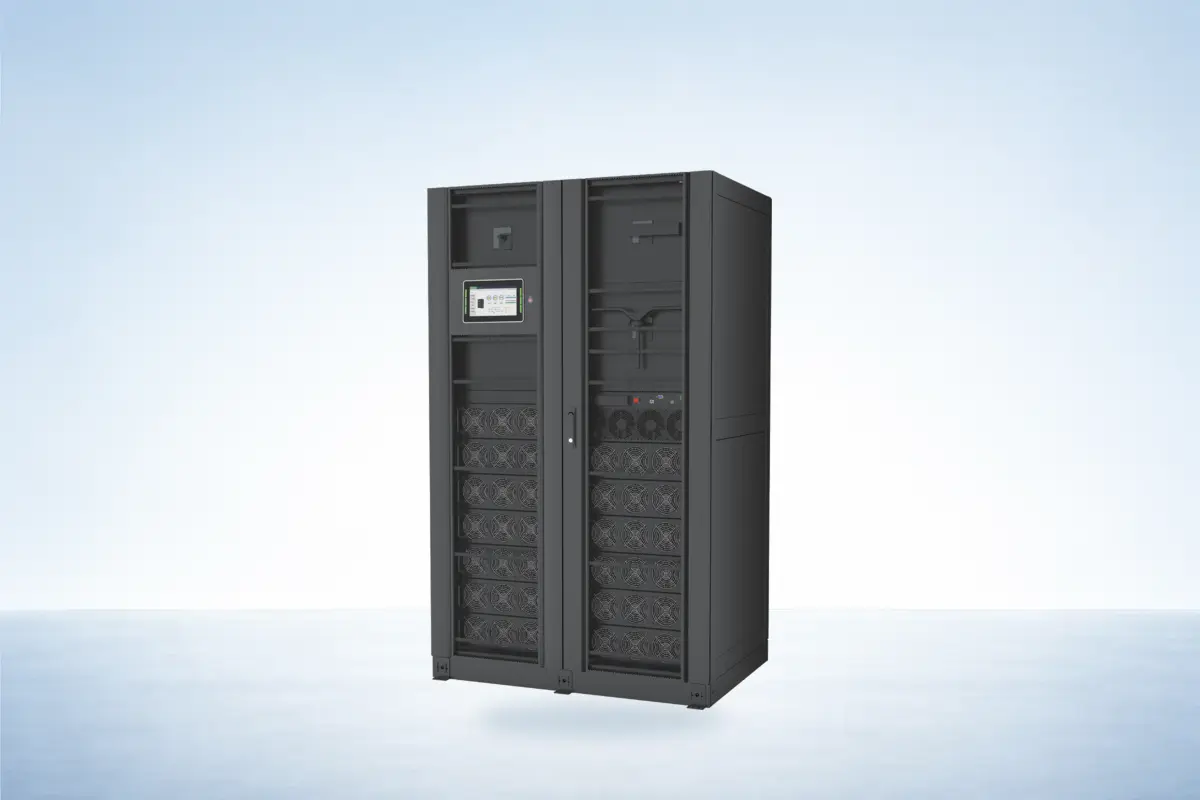

ACM Series 50–600kVA Modular UPS
Product Overview
ACM Series 50–600kVA Modular UPS is a scalable online double-conversion UPS designed for data centers, telecommunications, industrial facilities, and other mission-critical applications.
Scalable architecture: 50kVApower modules support flexible system expansion up to 600kVAwith configurable redundancy.
Wide input tolerance: -40% to +25%input voltage range, input power factor up to 0.99,
and THDi 2%.
High efficiency:Up to 96%online double-conversion efficiency and up to 99% in ECO mode.
Flexible battery options:Supports external VRLA or lithium battery systems according to project requirements.
Smart communication:Supports RS232, RS485, USB, EPO, dry-contact I/O,
and optional parallel communication ports.
Configuration Note: Final system configuration depends on cabinet selection,
installed module quantity, redundancy level, battery system,
communication options, and project electrical design.
Applications
Data Center
Telecommunications
Industrial
Finance
Healthcare
Data Parameters
| Model | AC200/50A | AC300/50A | AC400/50A | AC600/50A | |
|---|---|---|---|---|---|
| Rate Power | 200kVA | 300kVA | 400kVA | 600kVA | |
| Main Input | Input | 3P5W (3P + N + PE) | |||
| Rate Voltage | 380/400/415VAC (L-L); 220/230/240VAC (L-N) | ||||
| Rate Freq. | 50/60Hz | ||||
| Input PF | >0.99 | ||||
| Current distortion | THDi<2% | ||||
| Voltage range | 304–478VAC (L-L) full load; 304–228VAC (L-L) power derate from 100% to 50% | ||||
| Freq. range | 40–70Hz | ||||
| Battery | Rate voltage | ±240VDC (default 40 PCS, 30–50 PCS, selected) | |||
| Charging capacity | Max. 20% Pout | ||||
| Charging accuracy | ±1% | ||||
| Bypass | Rate voltage | 380/400/415VAC (L-L); 220/230/240VAC (L-N) | |||
| Voltage range | Range: -40% ~ +25%, Settable, default -20% ~ +15% | ||||
| Overload | <110%, long time operation 110%<load<125%, 10 mins 125%<load<150%, 1 min >150%, 200ms | ||||
| Inverter | Rate voltage | 380/400/415VAC (L-L); 220/230/240VAC (L-N) | |||
| Rate Freq. | 50/60Hz | ||||
| Output PF | 1 | ||||
| Voltage accuracy | ±1.0% | ||||
| Output THDu | <1% (linear load), <5% (non-linear load according to IEC 62040-3) | ||||
| Overload | 110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms | ||||
| Frequency accuracy | 0.1% | ||||
| Synchronize window | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz | ||||
| Slew rate | Settable, 0.5Hz/s ~ 3Hz/s, default 0.5Hz/s | ||||
| Crest factor | 3:1 | ||||
| Phase Accuracy | 120°±0.5° | ||||
| Efficiency | Up to 96.5% | ||||
| System | Display | LED + 7 inch touch LCD | LED + 10 inch touch LCD | ||
| Certification-Safety | IEC62040-1, IEC60950-1 | ||||
| Certification-EMC | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) | ||||
| Certification-Perf. | IEC62040-3 | ||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start, Air filter | ||||
| Option | SNMP card, AS400 card, Parallel kit, SPD | ||||
| Environment | 0–40℃ (operation); -25℃–70℃ (storage); 0–95% (Humidity, non-condensing) | ||||
| Noise (dB) (1 meter) | 72dB @ 100% load, 69dB @ 45% load | ||||
| Dimension | Cabinet (W*D*H) mm | 600*750*1600 | 600*750*2000 | 600*1000*2000 | 1200*850*2000 |
| Module (W*D*H) mm | 440*475*140 | ||||
| Weight(kg) | Cabinet | 170 | 220 | 320 | 450 |
| Module | 23 | ||||
| Power Module rated capacity | 50kW | ||||
