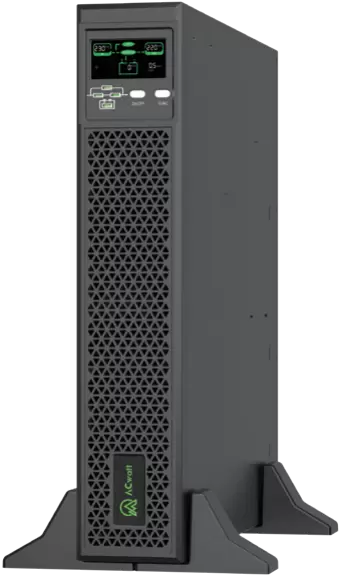

ACS Series 1~3kVA online Tower UPS
Power range
1P/1P, online double conversion Characteristics 1~3kVA
Operation
1P/1P, online double conversion Characteristics 1~3kVA
Characteristics
- 1P/1P, online double conversion 1~3kVA
- Government , Finance , IT , Education, Transportation, Broadcasting, Medical, Energy , etc . High efficiency up to 96% .
- Output PF =1, high load adaptability .
- Wide input voltage range of 110~300 Vac .
- Max charging current up to 12A.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
| Rate Power | 1kVA/1kW | 1.5kVA/1.5kW | 1kVA/1kW | 2kVA/2kW | 2kVA/2kW | 3kVA/3kW | 3kVA/3kW | |
| Cold start | Default output 50/60Hz | |||||||
| Input voltage range | 110~300VAC;100% load@176VAC~27 6VAC , 100%~50% power derating@110VAC~176VAC , 50% load@276VAC~300VAC | |||||||
| Input power factor | ≥0.99 | |||||||
| Frequency range | 50/60±5Hz(default), ±3Hz(s ettable) | |||||||
| Output power factor | 1.0 | |||||||
| Output | Rate voltage | 220/230/240VAC, 200/208VAC(PF=0.9) | ||||||
| Load response | ≤5% (0% - 100% -0%) | |||||||
| Recovery time | ≤40ms (0% - 100% -0%) | |||||||
| Output THDu | ≤2% , Linear load ; ≤ 5% non-linear load accordi ng to IEC62040-3 | |||||||
| Socket(option) | IEC, Schuko, NEMA, South Africa, UK | |||||||
| Transfer time | Main to BAT | 0 | ||||||
| INV to BYP | 4ms | |||||||
| Crest factor | 3:1 | |||||||
| Efficiency (normal mod e) | Up to 96% | |||||||
| Noise (1 meter ) | 43dB@<60%load, 47dB@>60%l oad | <50dB@<60%load,<55dB@>60%load | <50dB@<60%load,<55dB@>60%load | |||||
| Overload | Normal | 102%~110%: 30mins, 110%~125%:10mins, 125%~150% : 30 seconds | ||||||
| mode | 102%~110%: 1min, 110%~125%: 10 seconds, 125%~150%:5 seconds | |||||||
| Bypass mode | <130%: long time, 130%~150%:10mins, 150%~180%:5 seconds | |||||||
| Battery | Quantity | 2 ( 12VDC*9Ah) 3 ( 12VDC*7/9Ah) | 3 ( 12VDC*9Ah) | Depend on external battery | 4 ( 12VDC*9Ah) 6 ( 12VDC*7/9Ah) | Depend on external battery | 6 ( 12VDC*9Ah) 8 ( 12VDC*7/9Ah) | Depend on external battery |
| Max charging | 1A | 1-12A(optional) | 1A | 1-12A(optional) | 1A | 1-12A(optional) | ||
| Rate voltage | 24/36VDC | 36VDC | 24/36VDC | 48/72VDC | 72/96VDC | |||
| Standard | EPO, RS232 | |||||||
| Option | SNMP card, AS400, USB, RS485, Air filter | |||||||
| Dimension ,W*D*H(mm) | 144*355*226 | 190*400*328 | 144*398*223 | 190*400*328 | 144*398*223 | |||
| Weight (kg) | 16.6/19.1 | 5 | 21.5/26.7 | 7 | 26.7/31.5 | 7 | ||
