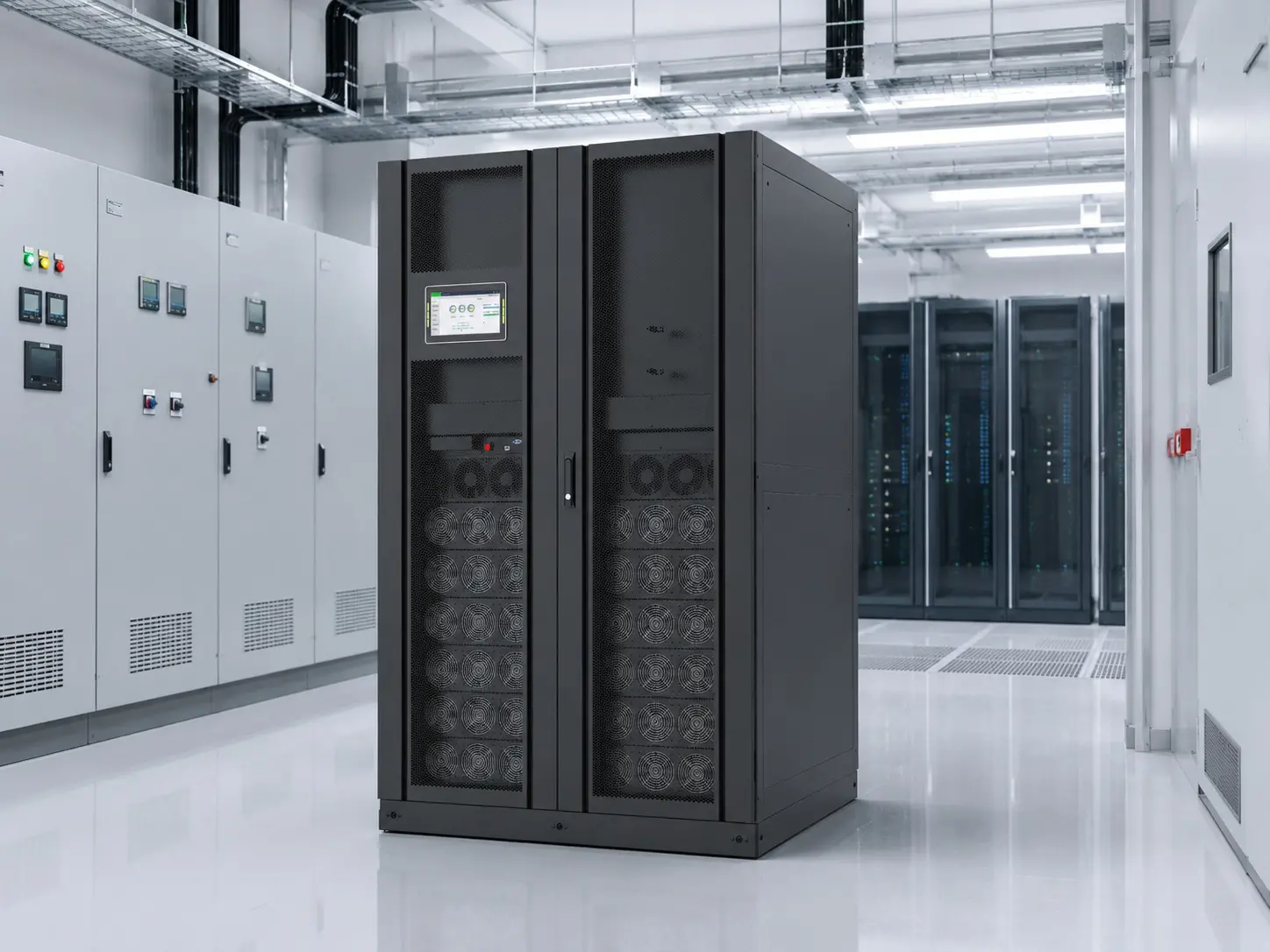

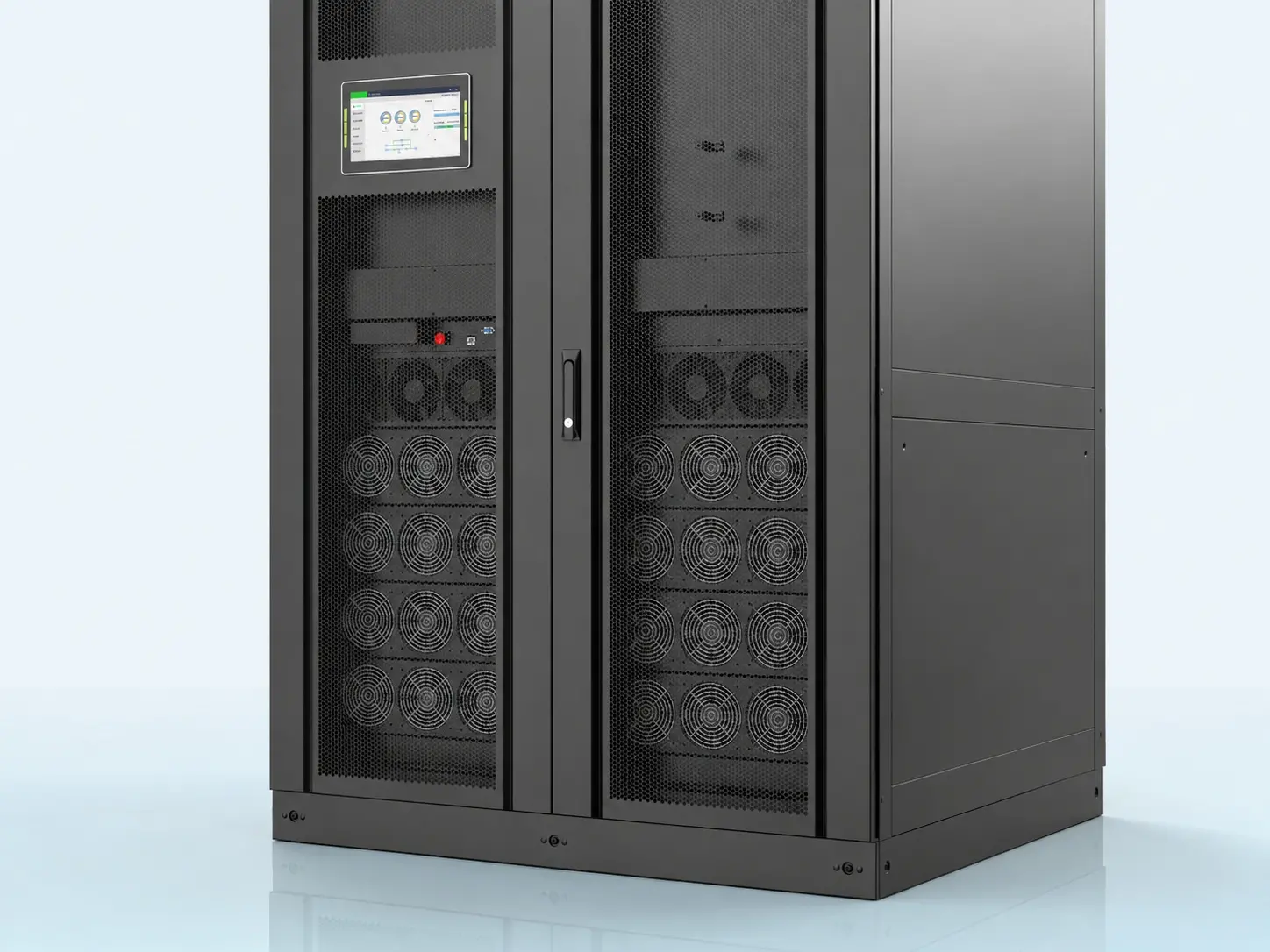

ACM Series 50–600kVA Modular UPS

Product Overview

ACM Series 50–600kVA Modular UPS is a scalable online double-conversion UPS designed for data centers, telecommunications, industrial facilities, and other mission-critical applications.

Scalable architecture: 50kVApower modules support flexible system expansion up to 600kVAwith configurable redundancy.

Wide input tolerance: -40% to +25%input voltage range, input power factor up to 0.99, and THDi 2%.

High efficiency:Up to 96%online double-conversion efficiency and up to 99% in ECO mode.

Flexible battery options:Supports external VRLA or lithium battery systems according to project requirements.

Smart communication:Supports RS232, RS485, USB, EPO, dry-contact I/O, and optional parallel communication ports.

Configuration Note: Final system configuration depends on cabinet selection, installed module quantity, redundancy level, battery system, communication options, and project electrical design.

Applications

Data Center

Telecommunications

Industrial

Finance

Healthcare

Data Parameters

ACM SERIES MODULAR UPS

ACM Series 50–600kVA Modular UPS Specifications

Scalable three-phase online modular UPS platform using 50kW power modules. Select the required cabinet capacity below to identify the corresponding ACM model, module configuration and physical specifications.

System Range

50–600kVA

Scalable modular platform

Power Module

50kW

Modular power unit

Online Efficiency

Up to 96.5%

Online double conversion

Output Power Factor

1.0

Unity power factor

Choose Your ACM Model

Cabinet capacity is scalable using 50kW power modules.

Model	Rated Power	Max. 50kW Modules	Cabinet Dimensions	Cabinet Weight
Model & Cabinet Configuration
AC200/50A	200kVA	4 Modules	600 × 750 × 1600 mm	170 kg
AC300/50A	300kVA	6 Modules	600 × 750 × 2000 mm	220 kg
AC400/50A	400kVA	8 Modules	600 × 1000 × 2000 mm	320 kg
AC600/50A	600kVA	12 Modules	1200 × 850 × 2000 mm	450 kg

50kW Power Module
Rated Capacity	50kW
Dimensions (W × D × H)	440 × 475 × 140 mm
Weight	23 kg

Main Input
Input	3P5W (3P + N + PE)
Rated Voltage	380 / 400 / 415VAC (L-L); 220 / 230 / 240VAC (L-N)
Rated Frequency	50 / 60Hz
Frequency Range	40–70Hz
Input Power Factor	>0.99
Current Distortion	THDi <2%
Input Voltage Range	304–478VAC (L-L) at full load; 228–304VAC (L-L) with power derated from 100% to 50%

Battery & Charger
Rated Voltage	±240VDC (default 40 PCS, 30–50 PCS selectable)
Charging Capacity	Max. 20% × Pout
Charging Accuracy	±1%

Bypass
Rated Voltage	380 / 400 / 415VAC (L-L); 220 / 230 / 240VAC (L-N)
Voltage Range	-40% to +25%, settable; default -20% to +15%
Overload	<110%: long-time operation; 110–125%: 10 minutes; 125–150%: 1 minute; >150%: 1 second

Inverter Output
Rated Voltage	380 / 400 / 415VAC (L-L); 220 / 230 / 240VAC (L-N)
Rated Frequency	50 / 60Hz
Output Power Factor	1.0
Voltage Accuracy	±1.0%
Output THDu	<1% linear load; <5% non-linear load according to IEC 62040-3
Overload	110% for 1 hour; 125% for 10 minutes; 150% for 1 minute; >150% for 200ms
Frequency Accuracy	0.1%
Synchronization Window	Settable ±0.5Hz to ±5Hz; default ±3Hz
Slew Rate	Settable 0.5Hz/s to 3Hz/s; default 0.5Hz/s
Crest Factor	3:1
Phase Accuracy	120° ±0.5°

System, Communication & Environment
Online Efficiency	Up to 96.5%
Display	AC200/50A: LED + 7-inch touch LCD AC300/50A / AC400/50A / AC600/50A: LED + 10-inch touch LCD
Protection Degree	IP20
Configuration	USB, RS232, RS485, dry contact, cold start, air filter
Options	SNMP card, AS400 card, parallel kit, SPD
Environment	0–40°C operation; -25–70°C storage; 0–95% RH, non-condensing
Noise @ 1m	72dB @ 100% load; 69dB @ 45% load

Standards & Certification
Safety	IEC 62040-1, IEC 60950-1
EMC	IEC 62040-2; IEC 61000-4-2 (ESD); IEC 61000-4-3 (RS); IEC 61000-4-4 (EFT); IEC 61000-4-5 (Surge)
Performance	IEC 62040-3

Configuration Note: Final system configuration depends on the selected ACM cabinet, installed 50kW power modules, redundancy requirement, battery configuration, communication options and project electrical design.
