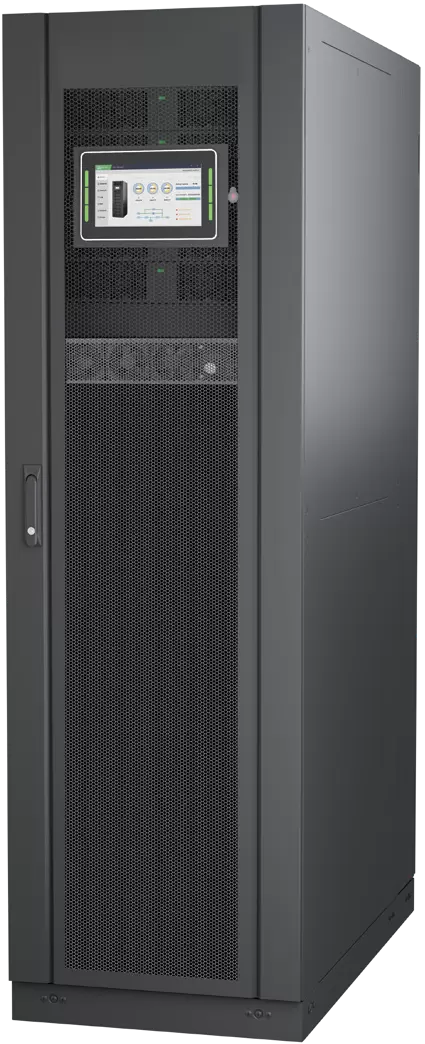

ACM Series 30~150kVA Modular UPS Internal 7-9Ah modular battery strips
Power range
30~ 150kVA
Operation
3P/3P, Online double conversion
Characteristics
- 10 inch touch LCD with IoT functions .
- High power density, small volume.
- High reliability and environmental adaptability.
- Optional full metal battery strips, with internal batteries capable of configuring up to 24 pcs battery strips.
- Standard configuration for mains input/output, maintenance bypass, battery breaker.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Rate Power | 90kVA | 150kVA | |||
Main input | Input | 3P5W (3P+N+PE) | |||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | ||||
| Rate Freq. | 50/60Hz | ||||
| Input PF | >0.99 | ||||
| Current distortion | THDi<3% | ||||
| Voltage range | 304~478VAC(L-L)full load ; 304~228VAC (L-L) power derate from 100% to 50% | ||||
| Freq. range | 40-70Hz | ||||
Battery | Rate voltage Model | ±240VDC | |||
| Model | UPS with internal batteries,12VDC/7~9Ah | ||||
| Quantity | Battery strips | ||||
| Charging capacity | Max. 20%*Pout | ||||
| Charging accuracy | ±1% | ||||
Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||
| Voltage range | Range: -40%- +25% , Settable, default -20% +15% | ||||
| Frequency range | 50/60Hz , Settable : ±1Hz , ±3Hz , ±5Hz | ||||
Inverter | Rate voltage | 380/400/415VAC(L-L); 220/230/240VAC(L-N) | |||
| Rate Freq. | 50/60Hz | ||||
| Output PF | 1 | ||||
| Voltage accuracy | ±1.0% | ||||
| Output THDu | <1% ( linear load ) ,<5% ( non-linear load according to IEC 62040-3 ) | ||||
| Overload | 110%,1 hour; 125%,10 mins ; 150%,1 min ; >150%,200ms | ||||
| Frequency accuracy | 0.1% | ||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | ||||
| Slew rate | Settable 0.5Hz/S-3Hz/S, default 0.5Hz/S | ||||
| Crest factor | 3:1 | ||||
| Phase Accuracy | 120°±0.5° | ||||
System | Efficiency | Up to 96% | |||
| Display | LED + 10 inch touch LCD | ||||
| Certification- Safety | IEC62040-1, IEC60950-1 | ||||
| Certification- EMS | IEC62040-2 ; IEC61000-4-2(ESD) ; IEC61000-4-3(RS) ; IEC61000-4-4 (EFT) ; IEC61000-4-5 (Surge) | ||||
| IP degree | IP20 | ||||
| Configuration | USB, RS232, RS485, Dry contact, Air filter | ||||
| Option | SNMP card, AS400 card, Parallel kit, Cold start | ||||
| Environment | 0-40c ( operation ) ; -25℃ ~70c ( storage ) ; 0-95% (Humidity, non-condensing ) | ||||
Dimension | Cabinet (W*D*H) mm | 600*1000*2000 | |||
| Module(W*D*H) mm | 440*678*86(2U) | ||||
Weight(kg) | Cabinet (No include batteries) | 260 | 280 | ||
| Module | 23 | ||||
Power module rated capacity | 30KW | ||||
