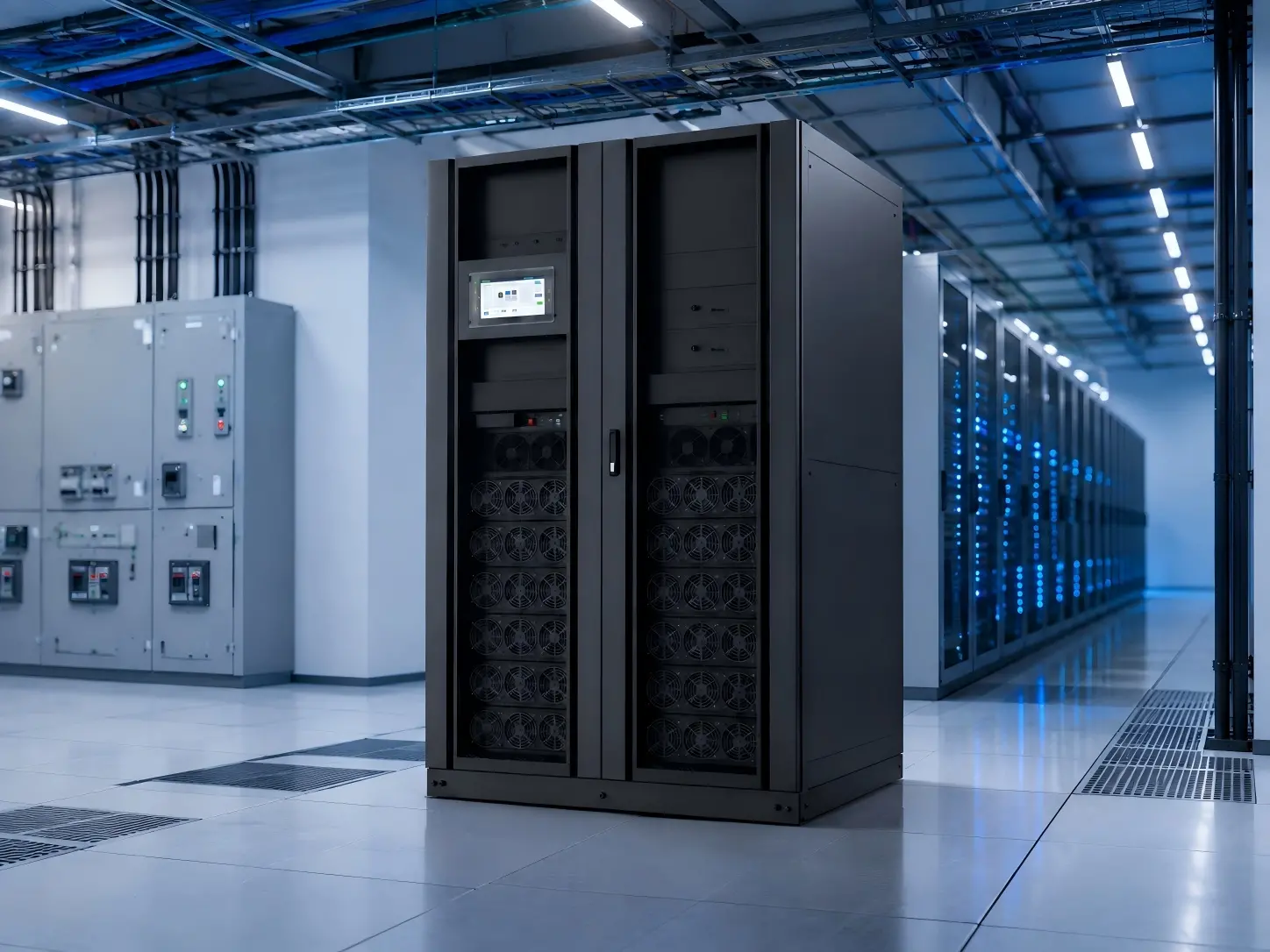

ACM-LV Series 40~560 kVA Modular UPS
Power range
40~560 kVA
Operation
3P/3P, Online double conversion
Characteristics
- Fully digital control, flexible and robust.

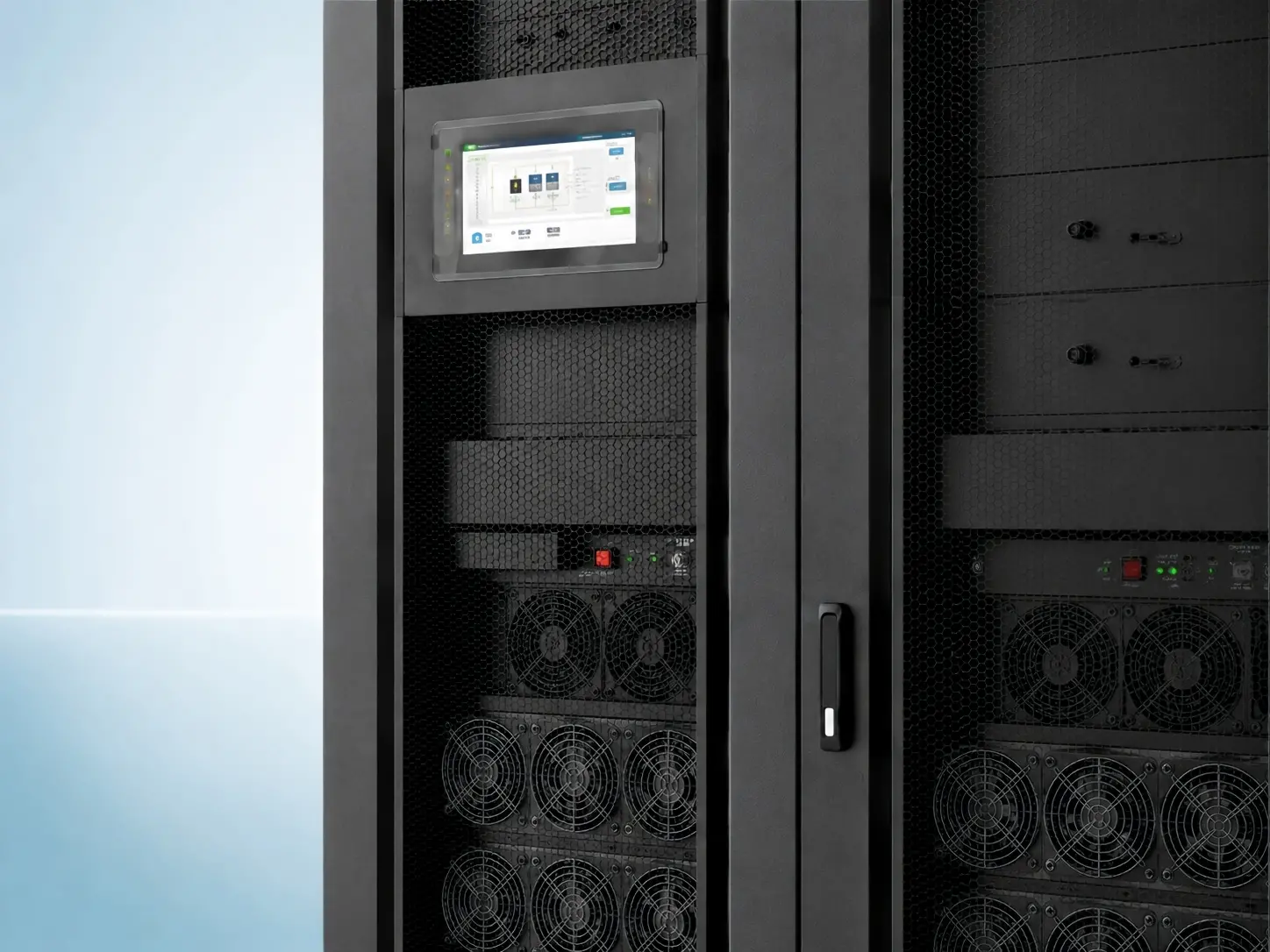

- 7 & 10 inch touch LCD , with IoT functions .
- High reliability and environmen tal adaptability, with protection of components level.
- Intelligent system self-diagnosis, rich fault recording, large ca pacity of history record
- storage space .
- Support 200 / 208 / 220V, 50 / 60 Hz power grid system , to provide the ideal power supply quality and load protecti on.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
| Rate Power | 120kVA/120kW | 200kVA/200kW | 280kVA/280kW | 360kVA/360kW | 560kVA/560kW | |||||
| Main input | Rate Voltage | 3P5W (3P+N+PE) | ||||||||
| Rate Freq. | 200/208/220VAC(L-L) | |||||||||
| PF | 50/60Hz | |||||||||
| Current distortion | >0.99 | |||||||||
| Voltage range | THDi<3% | |||||||||
| Freq. range | 167 260VAC(L-L)full load 167 125VAC (L-L) power derate from 100% to 50% | |||||||||
| 40-70Hz | ||||||||||
| Battery | Rate voltage | ±120VDC(default 20 PCS,16-24 PCS, selceted) | ||||||||
| Charging capacity | Max . 20%*Pout | |||||||||
| Charging accuracy | ±1% | |||||||||
| Rate voltage Voltage range Bypass Overload | 200/208/220VAC(L-L) | |||||||||
| Range: -40%- +25% , Settable, defa ult -20% - +15% ; | ||||||||||
| <110%, long time operation 110%< load<125%, 10 mins 125%<load<150%,1 min | ||||||||||
| Inverter | Rate voltage | 200/208/220VAC(L-L) | ||||||||
| Rate Freq. | 50/60Hz | |||||||||
| Output PF | 1 | |||||||||
| Voltage accuracy | ±1.0% | |||||||||
| Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | |||||||||
| Overload | 110%,1 hour ; 125%,10 mins ; 150%,1 min ; >150%,200 ms | |||||||||
| Frequency accuracy | 0.1% | |||||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | |||||||||
| Slew rate | Settable, 0.5HZ/S-3 HZ/S, default 0.5HX/S | |||||||||
| Crest factor | 3:1 | |||||||||
| Phase Accuracy | 120°±0.5° | |||||||||
| System | Efficiency | Up to 94% | ||||||||
| Display | LED + 7 inch touch LCD | LED + 10 inch touch LCD | ||||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | |||||||||
| Certification- EMS IP degree | IEC62040-2 ; IEC61000-4-2(ESD) ; IEC61000-4-3(RS) ; IEC610 00-4-4 (EFT) ; IEC61000-4-5 (Surge) | |||||||||
| Configuration | IP20 | |||||||||
| Option | USB, RS232, RS485, Dry contact, Cold star t, Air filter | |||||||||
| Noise(dB)(1 meter) | SNMP card AS400 card Parallel kit SPD | |||||||||
| 0-40 ℃ (operation) ; -25 ℃ ~ 70 ℃ (storage) ; 0-95% (Humidity, non-condensing ) | ||||||||||
| 72dB @ 100% load, 69dB @ 45% load | ||||||||||
| Cabinet(W*D*H)mm Dimension Module(W*D*H)mm | 600*1000*1600 | 600*1000*2000 | 600*1000*2000 | 1200*1100*2000 | 1200*1100*2300 | |||||
| 442*659*174 | ||||||||||
| Weight(kg) | Cabinet | 185 | 248 | 350 | 578 | 650 | ||||
| Module | 41 | |||||||||
| Power Module rated capacity | 40KW | |||||||||
