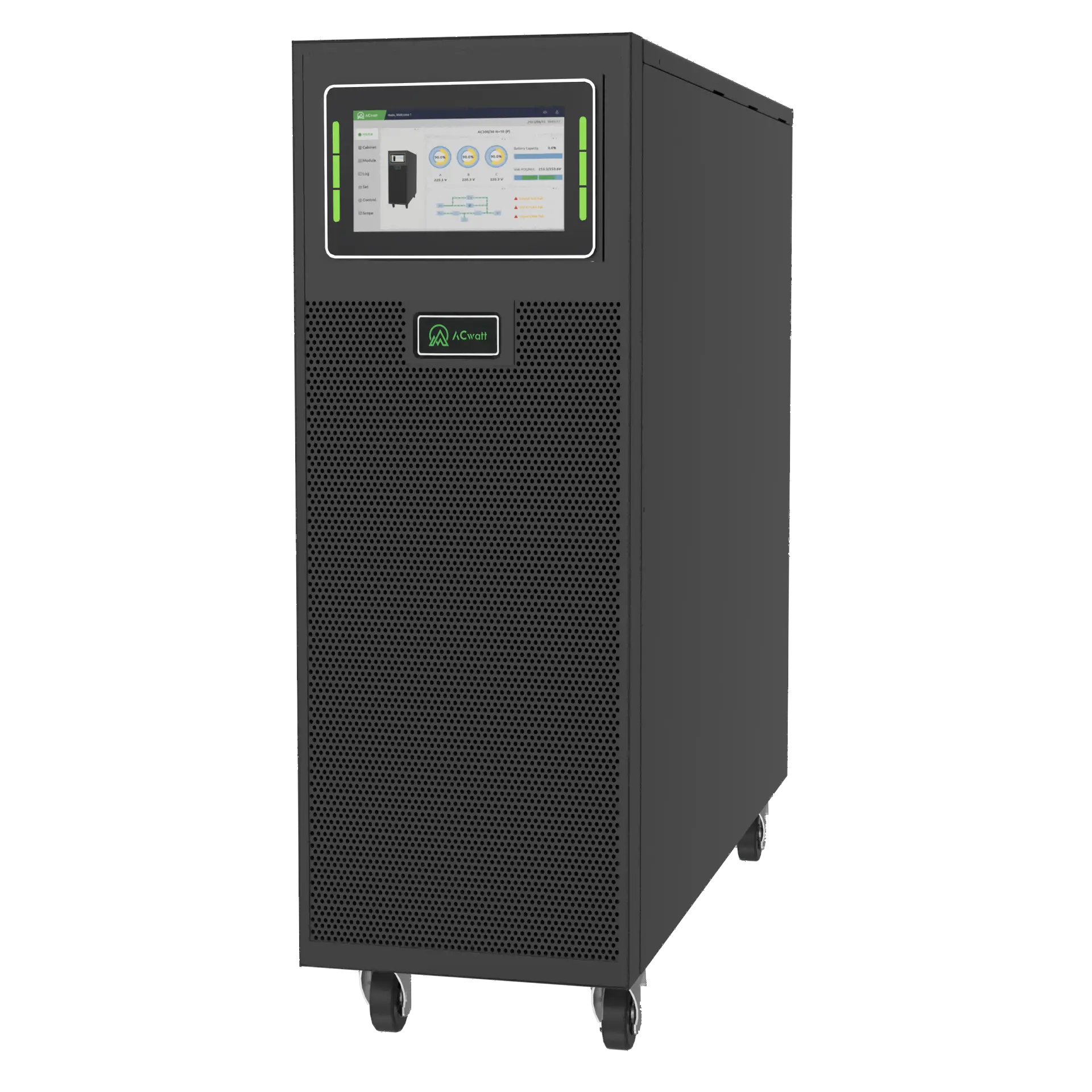

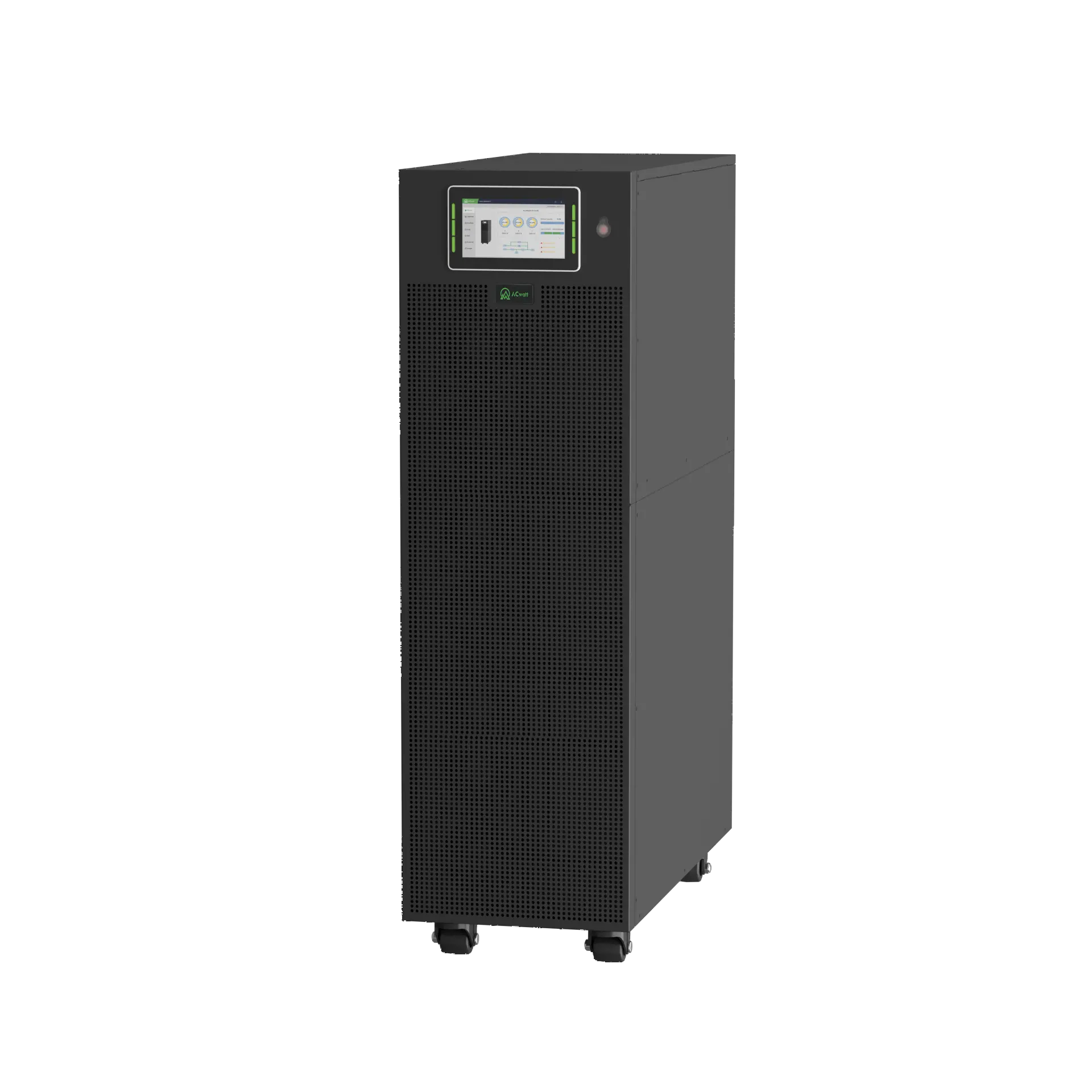

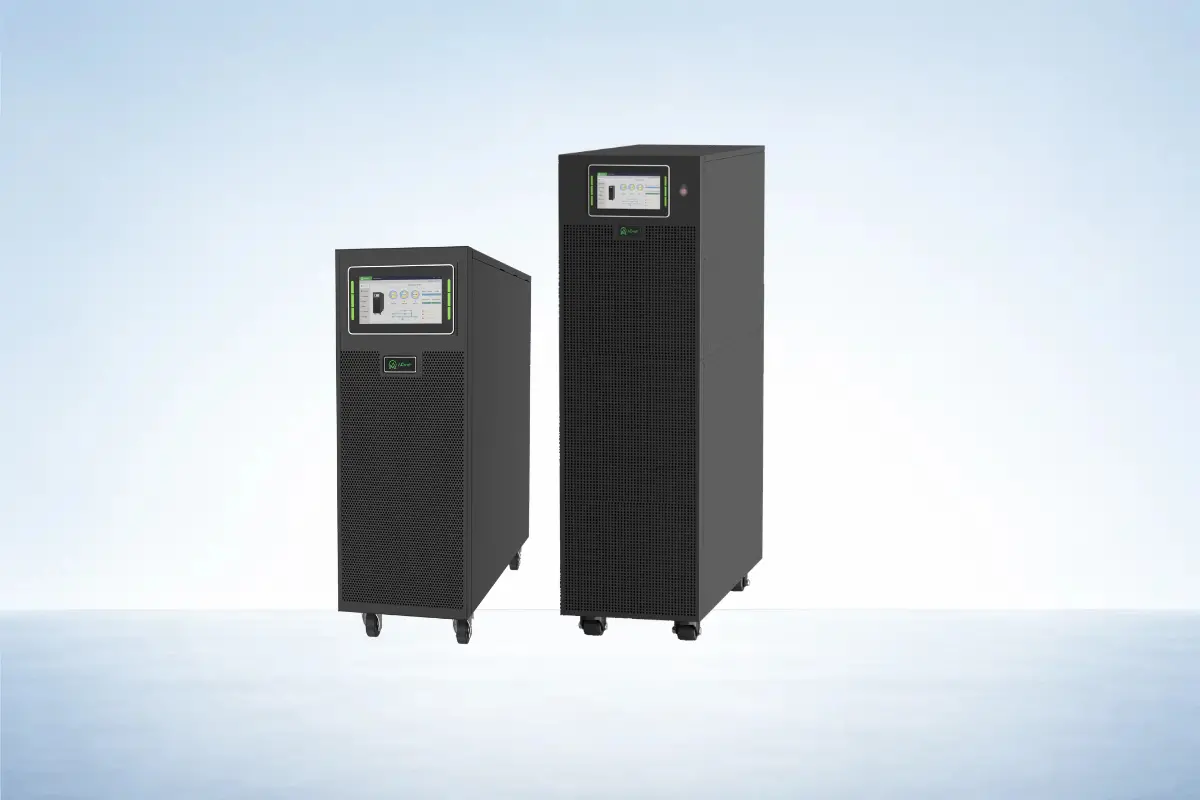

ACT Series 10–40kVA Three-Phase Tower UPS
ACT Series 10–40kVA Three-Phase Tower UPS is an online double-conversion system designed to provide stable, uninterrupted power for critical commercial and industrial loads.
Integrated battery options: The series supports 10/15/20/30/40kVA capacities, with internal 7Ah or 9Ah battery configurations for compact standard-backup installations.
High-efficiency protection: Online efficiency reaches up to 96%, ECO efficiency exceeds 99%, and the output power factor is 1.0.
Reliable power quality: Input power factor is above 0.99, input THDi is below 3%, and synchronized bypass transfer is completed with 0 ms interruption.
Intelligent management: The LCD touch screen, RS232, RS485, USB, dry contacts, EPO, optional SNMP, and optional four-unit parallel operation support local control and centralized monitoring.
Final selection depends on load capacity, internal battery quantity, required backup time, charging settings, redundancy, and project configuration.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| Model and Cabinet Configuration | ||||
| Capacity | Internal Battery Capacity | Dimensions (W × D × H) | Weight | Protection |
|---|---|---|---|---|
| 10 / 15 / 20kVA | 32–40 × 7Ah/9Ah | 250 × 828 × 711 mm | 53 kg, excluding batteries | IP20 |
| 30 / 40kVA | 80 × 7Ah/9Ah | 350 × 823 × 1200 mm | 90 kg, excluding batteries | IP20 |
| AC Input | |
| Grid System | Three-phase + Neutral + PE |
| Rated Input Voltage | 380 / 400 / 415 Vac |
| Full-Load Input Range | 304–478 Vac, line-to-line |
| Derating Input Range | 228–304 Vac, load derated from 100% to 75% |
| Input Frequency | 50 / 60 Hz; operating range 40–70 Hz |
| Input Power Factor | >0.99 at full load |
| Input Current Distortion | THDi <3% at 100% resistive load |
| AC Output | |
| Rated Capacity | 10 / 15 / 20 / 30 / 40kVA |
| Rated Output Voltage | 380 / 400 / 415 Vac, three-phase four-wire |
| Output Power Factor | 1.0 |
| Voltage Regulation | ±1% from 0–100% linear load |
| Output Voltage Distortion | THDu <1% linear load; <6% non-linear load |
| Frequency Regulation | 50 / 60 Hz ±0.1% |
| Overload Capability | 110% for 60 min; 125% for 10 min; 150% for 1 min; above 150% for 200 ms |
| Short-Circuit Current | 2.5 × rated RMS current; 3 × rated peak current |
| Battery and Charger | |
| Battery Bus Voltage | Rated ±240 Vdc |
| Nominal Battery String | 40 × 12V lead-acid battery blocks |
| Adjustable Battery Quantity | 32–44 battery blocks; installed quantity must match software setting |
| Internal Battery Options | 10–20kVA: 32–40 × 7Ah/9Ah; 30–40kVA: 80 × 7Ah/9Ah |
| Float Charge Voltage | 2.25 V/cell; adjustable from 2.20 to 2.35 V/cell |
| Boost Charge Voltage | 2.40 V/cell; adjustable from 2.30 to 2.45 V/cell |
| Temperature Compensation | -3.0 mV/°C/cell; adjustable from 0 to -5.0 |
| Charging Power | 10% of UPS capacity by default; adjustable from 1% to 20% |
| Bypass and Efficiency | |
| Synchronized Transfer Time | 0 ms |
| Bypass Voltage Range | Upper +10%, +15% or +20%; lower -10%, -15%, -30% or -40% |
| Bypass Frequency Range | Selectable ±1 Hz, ±3 Hz or ±5 Hz |
| Online Efficiency | Up to 96% |
| ECO Efficiency | Above 99% |
| Battery-Mode Efficiency | Up to 96% |
| Environment and Communication | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -40–70°C |
| Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | Up to 1000 m; derate 1% per 100 m from 1000 to 2000 m |
| Acoustic Noise | 65 dB at 100% load; 62 dB at 45% load |
| Display | LCD touch screen with status indicators and EPO switch |
| Standard Interfaces | RS232, RS485, USB and dry contacts |
| Optional Interfaces | SNMP and parallel communication card |
| Parallel Operation | Up to four UPS units for capacity expansion or redundancy |
| Applicable Standards | |
| Safety | EN 50091-1-1 / IEC 62040-1-1 / AS 62040-1-1 |
| Electromagnetic Compatibility | EN 50091-2 / IEC 62040-2 / AS 62040-2, Category C3 |
| Performance | EN 50091-3 / IEC 62040-3 / AS 62040-3, VFI SS 111 |
