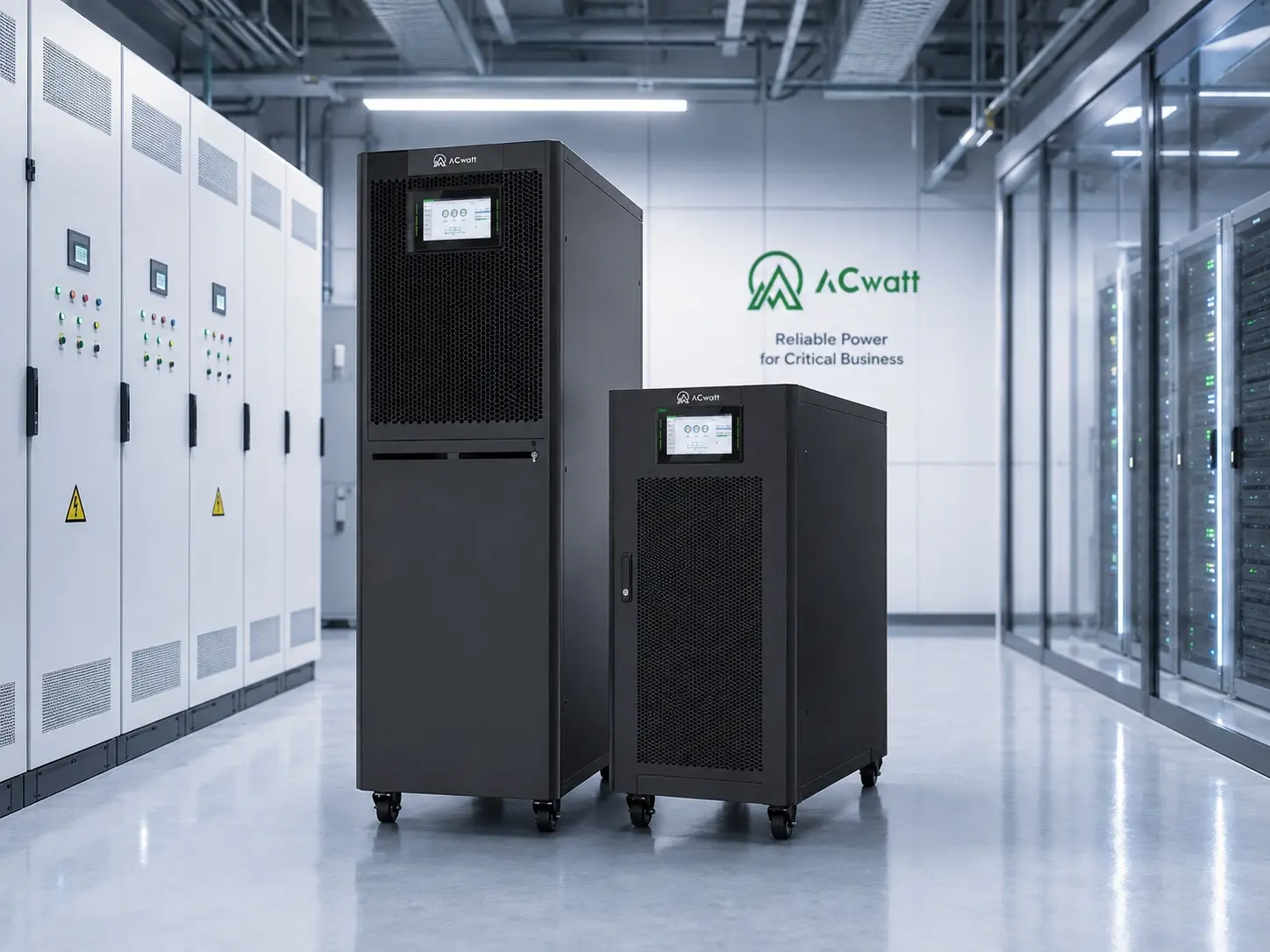

ACT Series 10–200kVA Three-Phase Tower UPS
ACT Series 10–200kVA Three-Phase Tower UPS is an online double-conversion power system designed to protect data-processing, telecommunications, industrial control, and other critical loads.
Flexible configurations: The series supports 10–200kVAlong-backup models with external batteries, plus selected internal 7Ah/9Ah modular battery-strip configurations.
High efficiency: Online double-conversion efficiency reaches up to 97%, ECO efficiency reaches 99%, and the output power factor is 1.0.
Reliable power quality: Input power factor reaches 0.99, input THDi is below 2%, and synchronized bypass transfer is completed with 0 ms interruption.
Intelligent management: A 7-inch LCD, RS232, RS485, USB, Ethernet, dry contacts, EPO, optional SNMP/AS400, and parallel operation support local and remote monitoring.
Final selection depends on load capacity, input/output mode, internal or external battery configuration, backup time, redundancy, and project requirements.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| Model Family | |||
| Configuration | Model | Capacity | Battery Arrangement |
|---|---|---|---|
| Internal Battery Strips | TT030EB-80P | 30kVA | 80 internal 7Ah/9Ah battery positions |
| Internal Battery Strips | TT040EB-160P | 40kVA | 160 internal 7Ah/9Ah battery positions |
| Internal Battery Strips | TT060EB-160P | 60kVA | 160 internal 7Ah/9Ah battery positions |
| Internal Battery Strips | TT100EB-200P | 100kVA | 200 internal 7Ah/9Ah battery positions |
| Long Backup Time | TT010EL / TT020EL / TT030EL / TT040EL / TT060EL / TT100EL / TT120EL / TT150EL / TT200EL | 10–200kVA | External battery cabinet or battery room |
| Mechanical Configuration | ||
| Configuration | Capacity Range | Dimensions (W × D × H) |
|---|---|---|
| Long Backup Tower | 10–30kVA | 250 × 745 × 556 mm |
| Long Backup Tower | 40–60kVA | 250 × 720 × 650 mm |
| Long Backup Tower | 100–120kVA | 350 × 950 × 900 mm |
| Long Backup Tower | 200kVA | 500 × 900 × 1300 mm |
| Internal Battery Strips | 10–30kVA / 80 positions | 400 × 790 × 780 mm |
| Internal Battery Strips | 40–60kVA / 160 positions | 500 × 880 × 1350 mm |
| Internal Battery Strips | 100kVA / 200 positions | 500 × 950 × 1750 mm |
| AC Input | |
| Rated Input Voltage | 380 / 400 / 415 Vac, three-phase four-wire |
| Full-Load Input Range | 304–478 Vac, line-to-line |
| Derating Input Range | 228–304 Vac, output derated from 100% to 50% |
| Rated Frequency | 50 / 60 Hz; operating range 40–70 Hz |
| Input Power Factor | 0.99 at full load |
| Input Current Distortion | THDi <2% at 100% linear load |
| AC Output | |
| Rated Capacity | 10–200kVA |
| Rated Output Voltage | 380 / 400 / 415 Vac, three-phase four-wire |
| Output Power Factor | 1.0 |
| Output Voltage Distortion | THDu <1% with linear load; <5% with non-linear load |
| Voltage Stability | ±1% balanced load; ±1.5% at 100% unbalanced load |
| Neutral Current Capability | 170% |
| Overload Capability | 110% for 1 hour; 125% for 10 minutes; 150% for 1 minute |
| Short-Circuit Current Limitation | 300% for 200 ms |
| Battery and Charger | |
| Battery Type | VRLA lead-acid battery; internal battery-strip or external battery configuration |
| Battery Bus Voltage | 10kVA: nominal ±120–264 Vdc; 20–200kVA: nominal ±192–264 Vdc |
| Nominal Battery String | 20 or 40 × 12V battery blocks, depending on configuration |
| Float Charge Voltage | 2.25 V/cell; adjustable from 2.20 to 2.35 V/cell |
| Boost Charge Voltage | 2.40 V/cell; adjustable from 2.30 to 2.45 V/cell |
| Temperature Compensation | -3.0 mV/°C/cell; adjustable from 0 to -5.0 |
| Charging Power, 10–30kVA | Adjustable from 1% to 50% of UPS capacity |
| Charging Power, 40–200kVA | Adjustable from 1% to 20% of UPS capacity |
| Bypass and Efficiency | |
| Synchronized Transfer Time | 0 ms |
| Bypass Voltage Tolerance | Upper: +10%, +15%, +20% or +25%; lower: -10%, -20%, -30% or -40% |
| Bypass Frequency Tolerance | ±1%, ±3% or ±5%, selectable |
| Online Double-Conversion Efficiency | Up to 97% |
| ECO Mode Efficiency | Up to 99% |
| Battery-Mode Efficiency | Up to 96.5% |
| Environment and Communication | |
| Operating Temperature | 0–40°C |
| Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | Up to 3000 m without derating; derate 2% per 100 m from 3000 to 4000 m |
| Acoustic Noise | 65 dB at 100% load; 62 dB at 45% load |
| Protection Level | IP20 |
| Display | 7-inch LCD display |
| Standard Communication | RS232, RS485, USB, Ethernet, dry contacts and EPO |
| Optional Communication | SNMP / AS400 expansion card |
| Parallel Operation | Up to four UPS cabinets for capacity expansion or 3+1 redundancy |
| Applicable Standards | |
| Safety | EN 50091-1-1 / IEC 62040-1-1 / AS 62040-1-1 |
| Electromagnetic Compatibility | EN 50091-2 / IEC 62040-2 / AS 62040-2, Category C3 |
| Performance | EN 50091-3 / IEC 62040-3 / AS 62040-3, VFI SS 111 |
