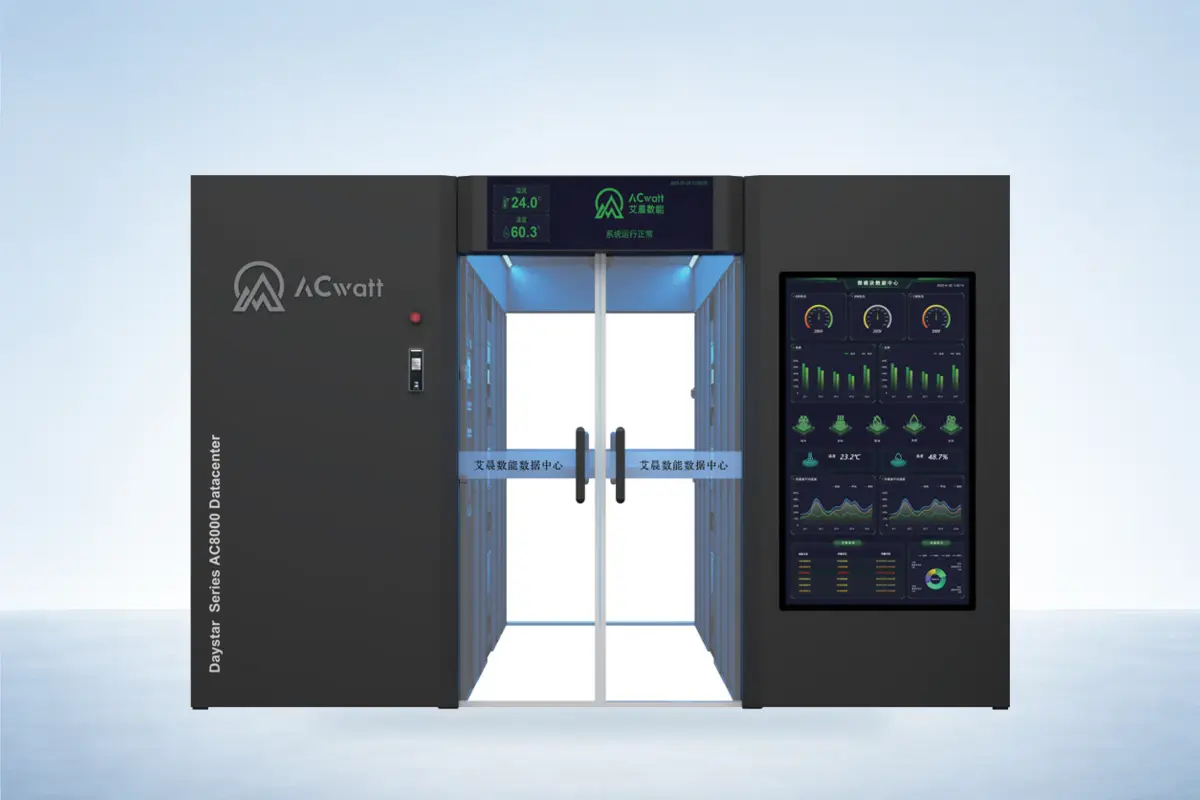

Daystar AC8000 Series Modular Data Center
Daystar AC8000 is a prefabricated modular data center solution designed for medium-to-large data centers, campus facilities, and other mission-critical IT environments.
It integrates IT cabinets, modular UPS, power distribution, in-row precision cooling, cold-aisle containment, environmental monitoring, video, and access control within one coordinated infrastructure system.
Scalable power: Supports built-in UPS capacity of up to 180 kVA, with external solutions of 200 kVA and aboveavailable according to project design.
High-density deployment: Supports 3–12 kW per cabinetwith 42U IT cabinets and 12.5–60 kWin-row precision cooling.
Intelligent management: A standard 23.6-inch touchscreenand web-based platform provide centralized monitoring of power, cooling, environment, video, access control, and system alarms.
Enclosed cold aisle: Automatic sliding doors, aisle lighting, environmental sensors, and front-and-rear access control support secure and energy-efficient operation.
Each AC8000 solution is configured according to IT load, cabinet quantity, UPS capacity, cooling demand, redundancy, power distribution, and monitoring requirements.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| System | |
| Model | AC8000 |
| Overall Dimensions | 3600 × L × 2600 mm |
| IT Rated Power per Cabinet | 3–12kW |
| Door | Automatic sliding doors / manual sliding doors |
| Lighting | LED lighting + RGB |
| Door Security | Fingerprint + IC card + face ID |
| Ambient Temperature | 0–45°C |
| Ambient Humidity | 10–95% |
| Protection Level | IP20 |
| Installation | Concrete floor or raised floor |
| IT Cabinet | |
| Cabinet Dimensions | 600 / 800 × 1200 / 1100 × 2000 / 2200 mm |
| Available Rack Space | 42U |
| Cable Entry | Top and bottom |
| Power Distribution Module | |
| Input | Single-input MCCB / dual-input ATS |
| Rated Input | 380 / 400 / 415VAC, 50 / 60Hz |
| Total Input Current | 63–400A |
| SPD | Class B/C, optional |
| Distribution Type | Integrated UPS power-distribution cabinet |
| UPS System | |
| Rated Capacity | Built-in maximum 180kVA; external 200kVA or more |
| Input Frequency | 50 / 60Hz, ±5Hz |
| Output Power Factor | 1.0 |
| Battery | Built-in rack battery cabinet or external battery cabinet |
| PDU | |
| Standard Type | IEC socket, 16 ports (12 × 10A + 4 × 16A) |
| Precision Cooling | |
| Cooling Capacity | 12.5–60kW, in-row |
| Cooling Method | Forced-air cooling |
| Refrigerant | R410A |
| Intelligent Monitoring | |
| HMI Interface | 23.8-inch all-in-one PC |
| System Functions | WEB remote access; centralized monitoring of power, environment, video and access-control systems |
| Monitoring Parts | Smoke sensor, temperature/humidity sensor, water leakage sensor, infrared detector, webcam, door security and fire lighting |
| Alarm Functions | Email / SMS alarm, optional sound and light alarm, phone voice alarm and mobile APP |
