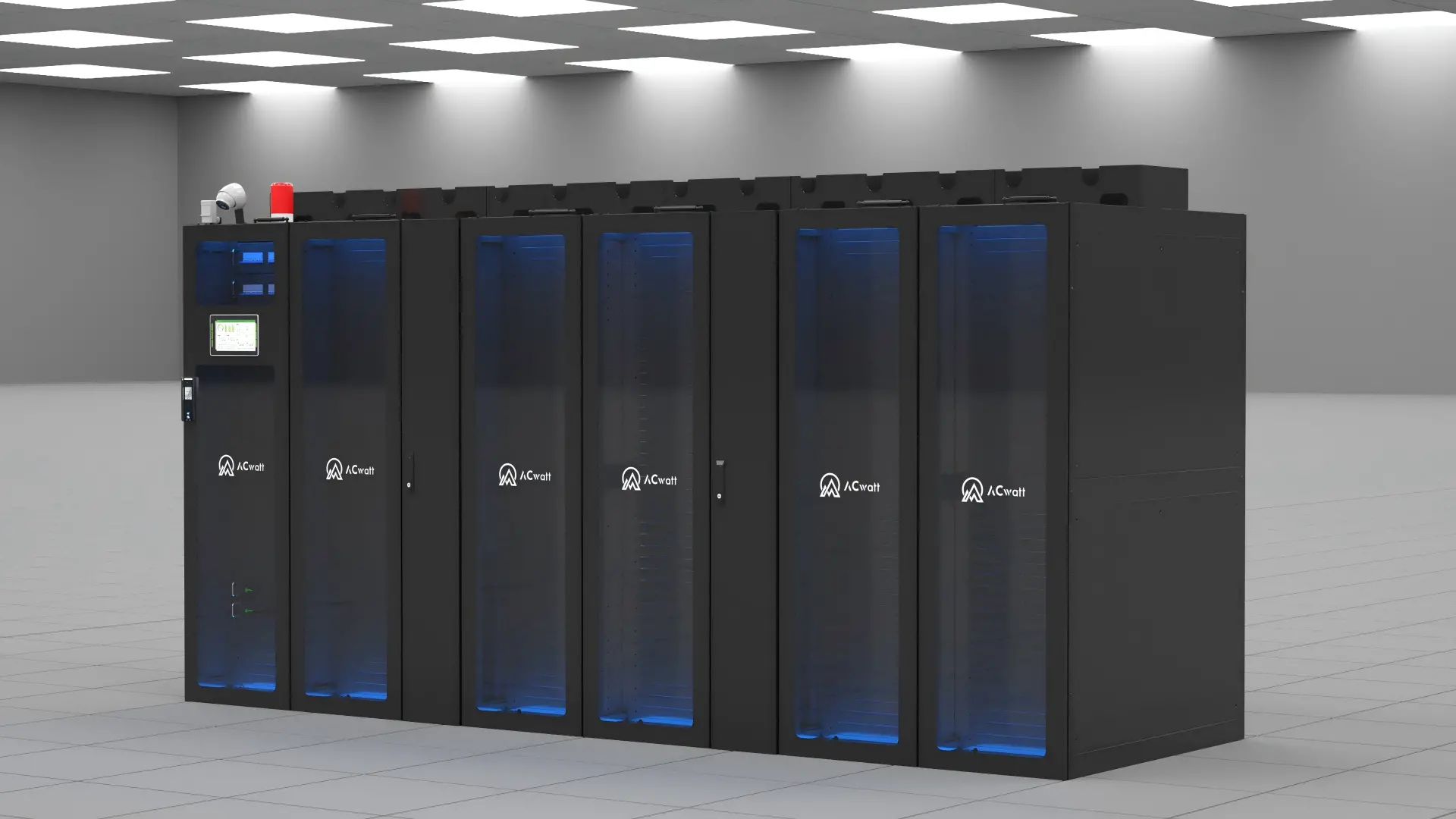

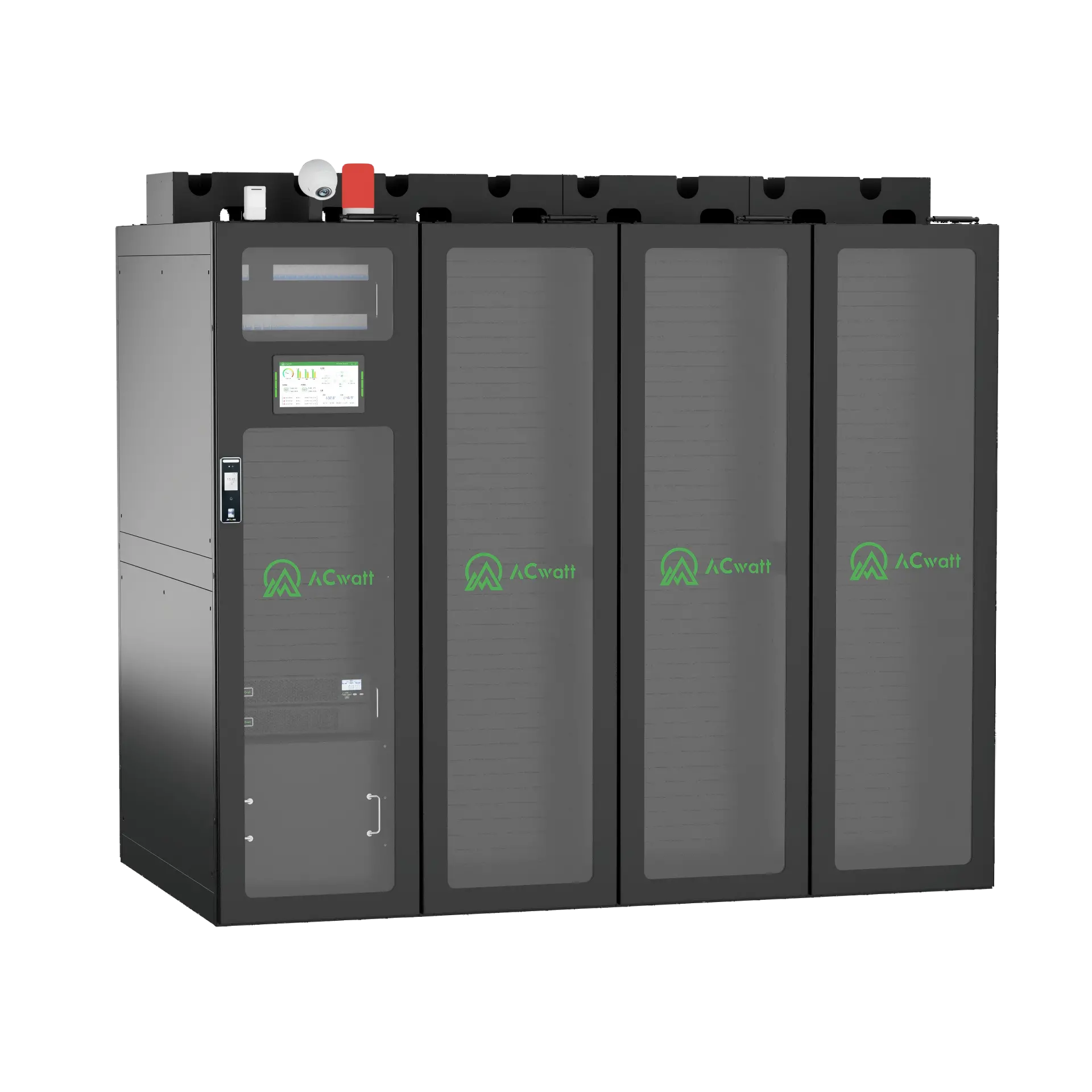

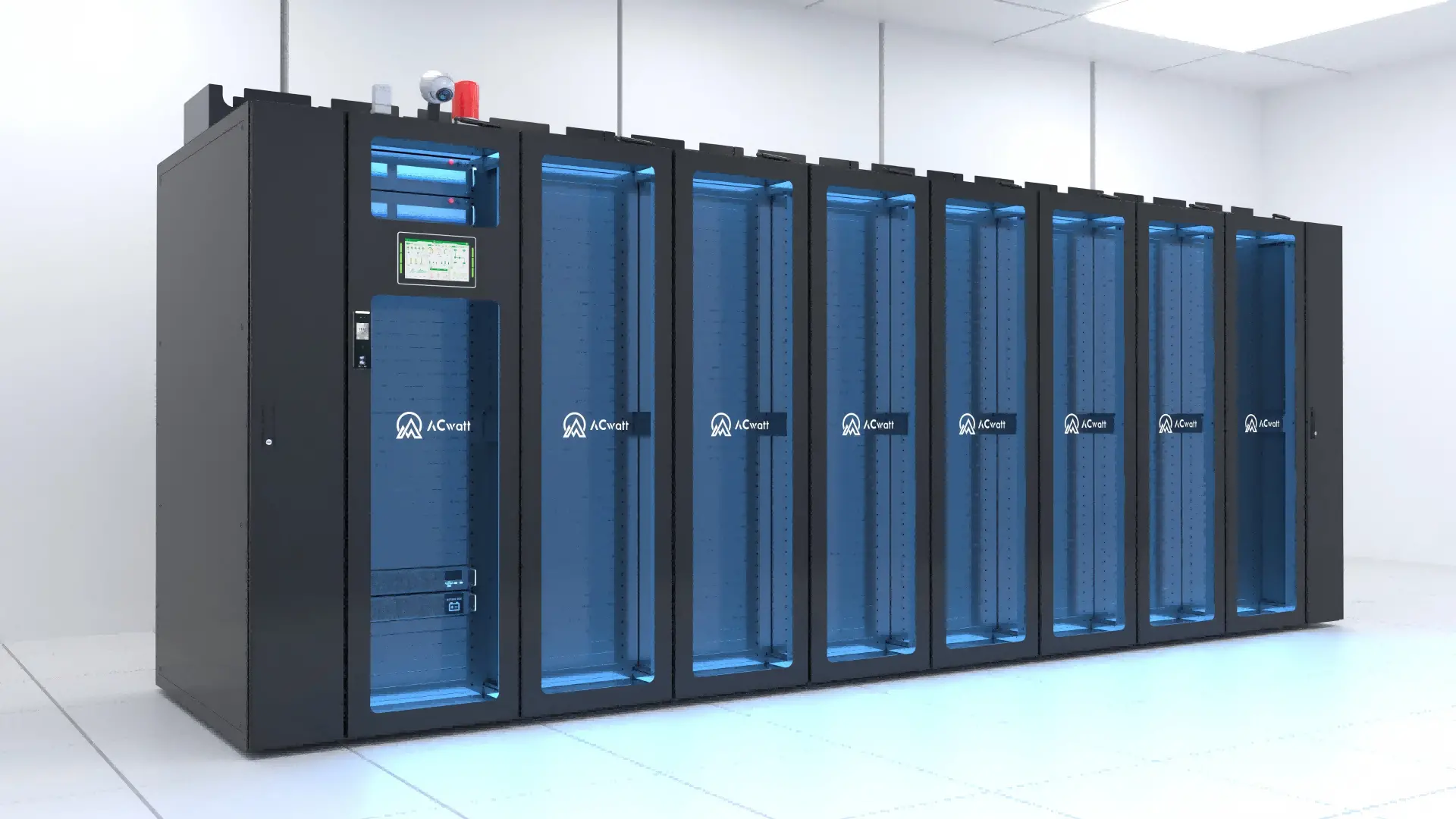

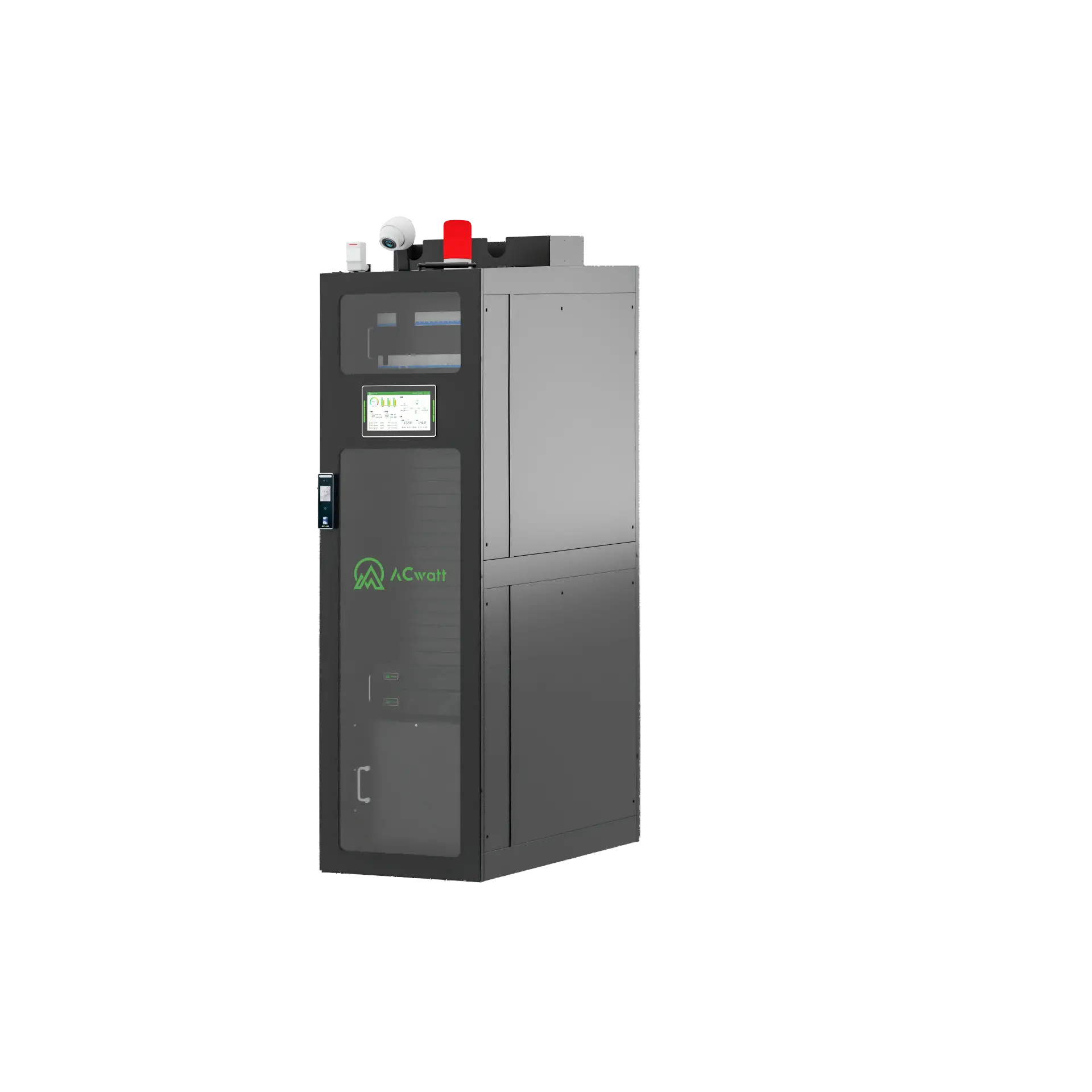

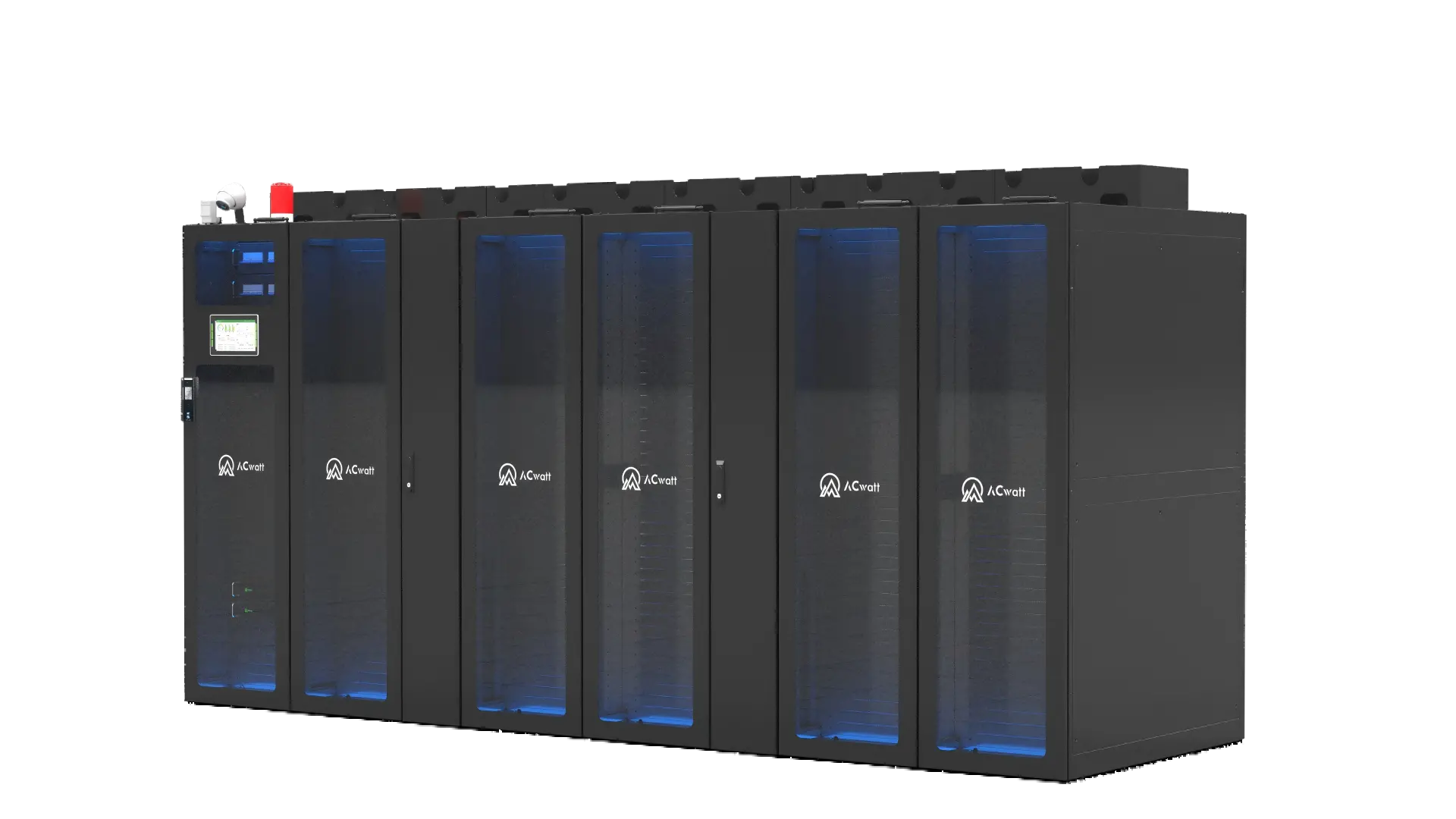

Matinal AC5000 Series Modular Data Center
Matinal AC5000is a prefabricated modular data center solution for edge facilities, branch sites, equipment rooms, and small-to-medium data centers.
It integrates IT cabinets, UPS, power distribution, battery backup, precision cooling, monitoring, access control, and emergency ventilation within one unified system.
Flexible expansion: Supports 1–15 cabinetsas standard and up to 30 cabinetswith customized power distribution.
Integrated power: Standard configurations support up to 45 kVA, with higher capacities available through customized design.
Smart management: A 10.1-inch touchscreenand web-based platform provide centralized system monitoring.
Secure access: Supports face recognition, IC card, password, and fingerprint access.
Each solution is configured according to project load, cooling demand, backup time, cabinet quantity, and monitoring requirements.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| System Configuration | |
| Model | AC5000 |
| Product Type | Prefabricated Modular Data Center |
| Cabinet Quantity | 1–15 cabinets as standard; expandable to 30 cabinets with customized power distribution branches |
| Operating Temperature | 0–40°C |
| Protection Level | IP5X |
| Cabinet System | |
| IT Equipment Space | Up to 42U per cabinet |
| Standard Dimensions | 600 × 1400 × 2000 mm |
| Rack Interface | Standard 19-inch installation interface |
| Cable Entry | Top and bottom cable entry |
| Power System | |
| Standard Integrated Power | Up to 45 kVA |
| Higher-Capacity Solutions | Available with customized power distribution or an integrated UPS main cabinet |
| Input Configuration | Single-phase or three-phase, according to project requirements |
| Battery Configuration | Battery packs or external battery cabinets |
| Surge Protection | Class C SPD |
| Standard PDU | Ordinary PDU; customized and intelligent PDU options are available |
| Precision Cooling | |
| Cooling Capacity | 3.5–25 kW |
| Cooling Type | Rack-mounted or in-row precision cooling |
| Airflow Direction | Back-to-front airflow |
| Monitoring & Management | |
| Local Display | 10.1-inch color touchscreen |
| Remote Management | Web-based system monitoring and management |
| Power Monitoring | UPS, power distribution and load status |
| Environmental Monitoring | Smoke, temperature, humidity and water leakage |
| Optional Monitoring Devices | Network camera, infrared sensor, SMS alarm and audible/visual alarm |
| Access Control & Safety | |
| Access Control Terminal | 2.4-inch four-in-one terminal on the main cabinet front door |
| Identification Methods | Face recognition, IC card, password and fingerprint |
| Emergency Ventilation | Automatic pop-up door ventilation |
