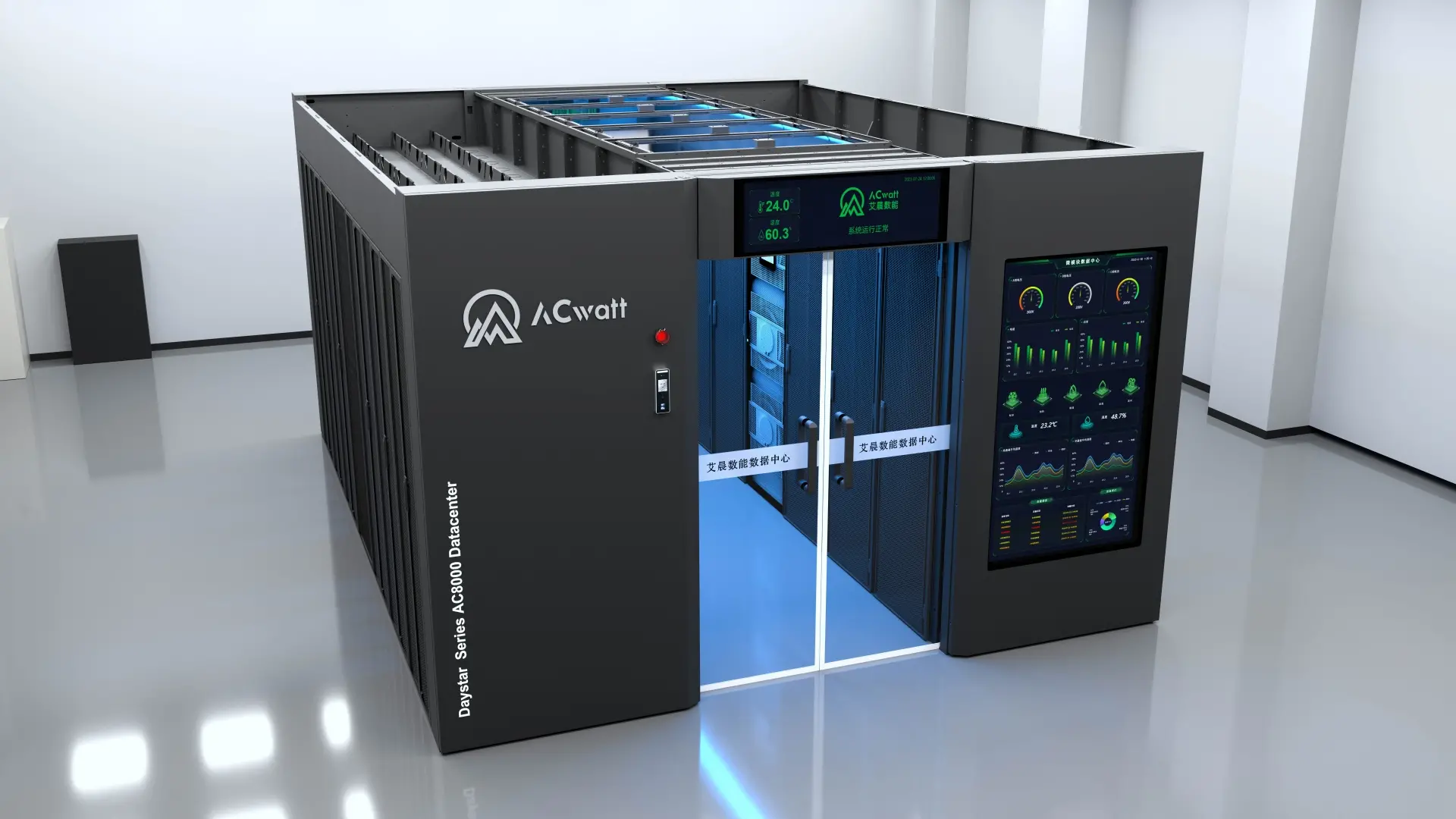

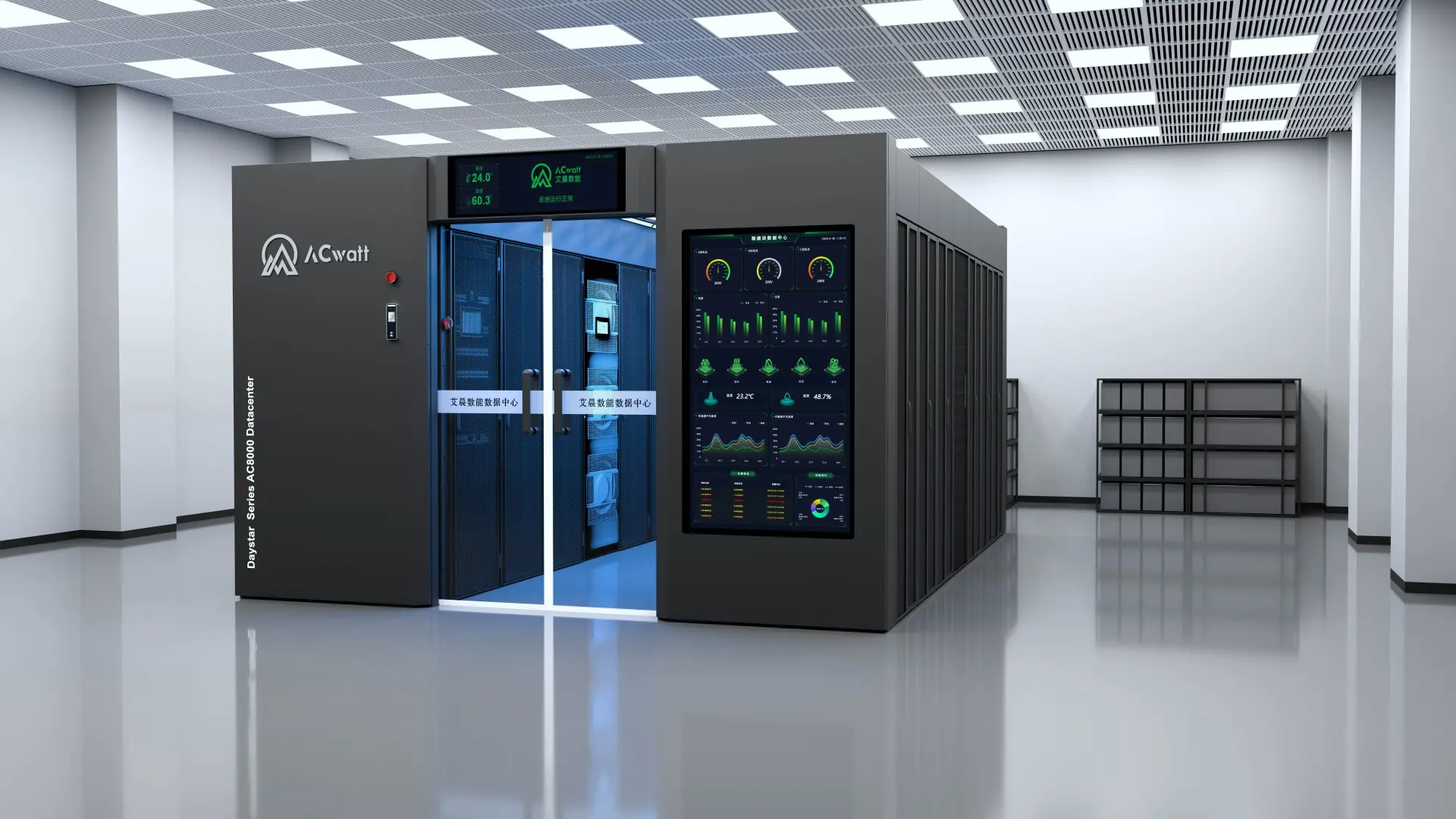

Daystar AC8000 Series Modular Data Center
Daystar AC8000 is a prefabricated modular data center solution designed for medium-to-large data centers, campus facilities, and other mission-critical IT environments.
It integrates IT cabinets, modular UPS, power distribution, in-row precision cooling, cold-aisle containment, environmental monitoring, video, and access control within one coordinated infrastructure system.
Scalable power: Supports built-in UPS capacity of up to 180 kVA, with external solutions of 200 kVA and above available according to project design.
High-density deployment: Supports 3–12 kW per cabinet with 42U IT cabinets and 12.5–60 kW in-row precision cooling.

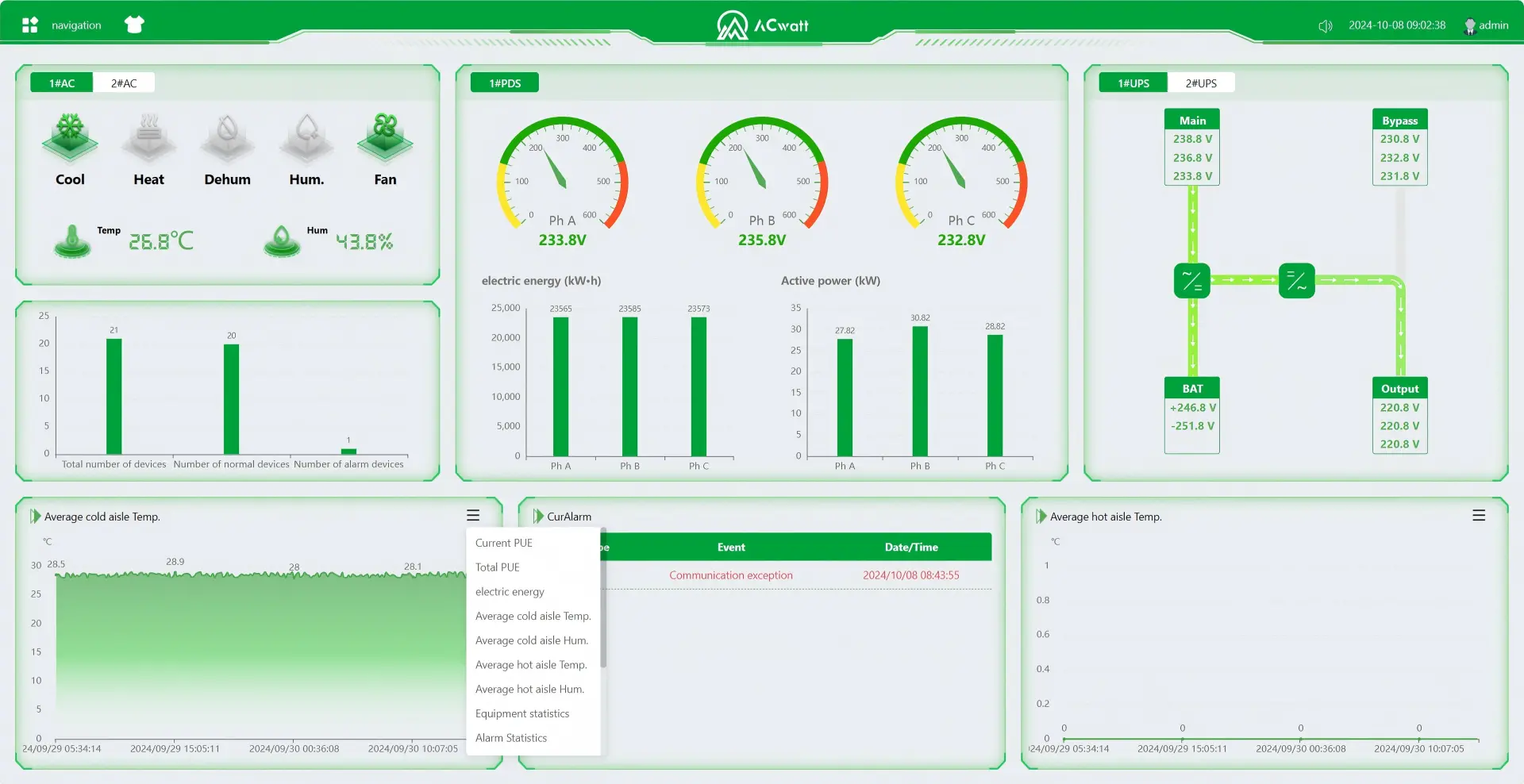

Intelligent management: A standard 23.6-inch touchscreen and web-based platform provide centralized monitoring of power, cooling, environment, video, access control, and system alarms.

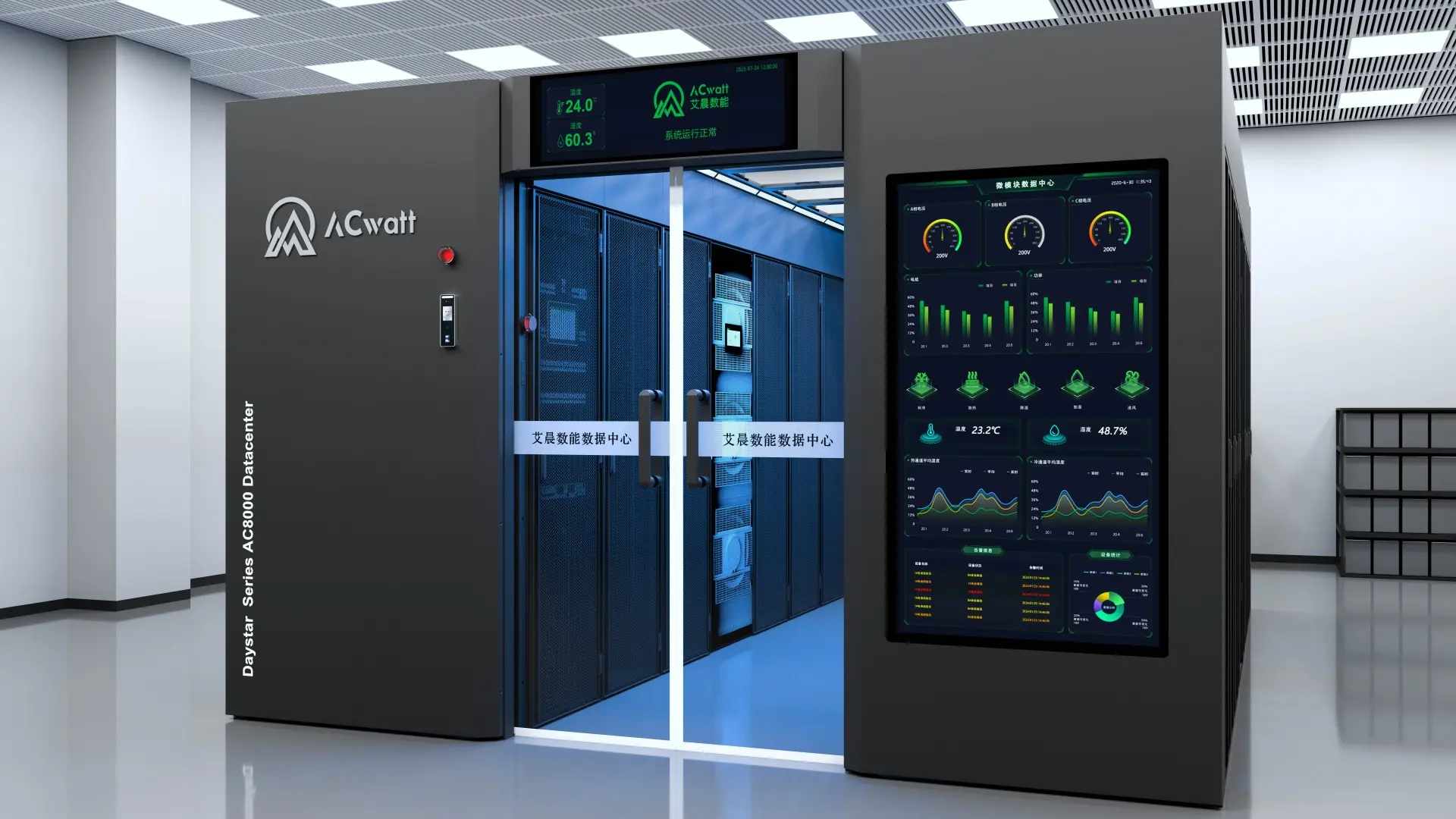

Enclosed cold aisle: Automatic sliding doors, aisle lighting, environmental sensors, and front-and-rear access control support secure and energy-efficient operation.
Each AC8000 solution is configured according to IT load, cabinet quantity, UPS capacity, cooling demand, redundancy, power distribution, and monitoring requirements.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| System Configuration | |
| Model | AC8000 |
| Product Type | Prefabricated Modular Data Center |
| Target Deployment | Medium-to-large data centers and campus facilities |
| Typical System Dimensions | 3600 × project-dependent length × 2600 mm |
| IT Rated Power per Cabinet | 3–12 kW |
| Operating Temperature | 0–45°C |
| Operating Humidity | 10–95% |
| Protection Level | IP5X |
| Installation | Concrete floor or raised floor |
| Cabinet & Enclosed Aisle | |
| Standard Cabinet Dimensions | 600/800 × 1200/1100 × 2000/2200 mm |
| IT Equipment Space | 42U per cabinet |
| Cable Entry | Top and bottom |
| Door System | Automatic sliding doors |
| Aisle Lighting | LED lighting with RGB ambient lighting |
| Access Control Methods | Face recognition, fingerprint, IC card and password |
| Access Control Location | One access-control terminal at both the front and rear entrances |
| Power Supply & Distribution | |
| Input Method | Single-input MCCB or dual-input ATS |
| Rated Input | 380 / 400 / 415 Vac, 50 / 60 Hz |
| Total Input Current | 63–400 A |
| Surge Protection | Class B or Class C SPD, subject to configuration |
| Distribution Architecture | Integrated UPS power distribution cabinet |
| Built-in UPS Capacity | Up to 180 kVA |
| External UPS Capacity | 200 kVA and above, subject to project design |
| UPS Output Power Factor | 1.0 |
| Battery Configuration | Rack-mounted battery cabinet or external battery cabinet |
| Standard PDU | 16 outlets: 12 × 10A IEC C13 and 4 × 16A IEC C19 |
| Precision Cooling | |
| Cooling Capacity | 12.5–60 kW |
| Cooling Type | In-row precision cooling |
| Refrigeration Method | Forced-air cooling |
| Refrigerant | R410A |
| Monitoring & Management | |
| Standard Monitoring Display | 23.6-inch touchscreen all-in-one PC |
| Optional Displays | 65-inch display and 38.6-inch top display |
| Remote Management | Web-based remote access and centralized monitoring |
| Monitoring Scope | Power, environment, cooling, video and access control systems |
| Environmental Sensors | Smoke, temperature and humidity, water leakage and infrared detection |
| Video & Security Monitoring | Network cameras, door access monitoring and fire-system integration |
| Alarm Options | Email, SMS, audible/visual, phone voice and mobile-app alerts |
