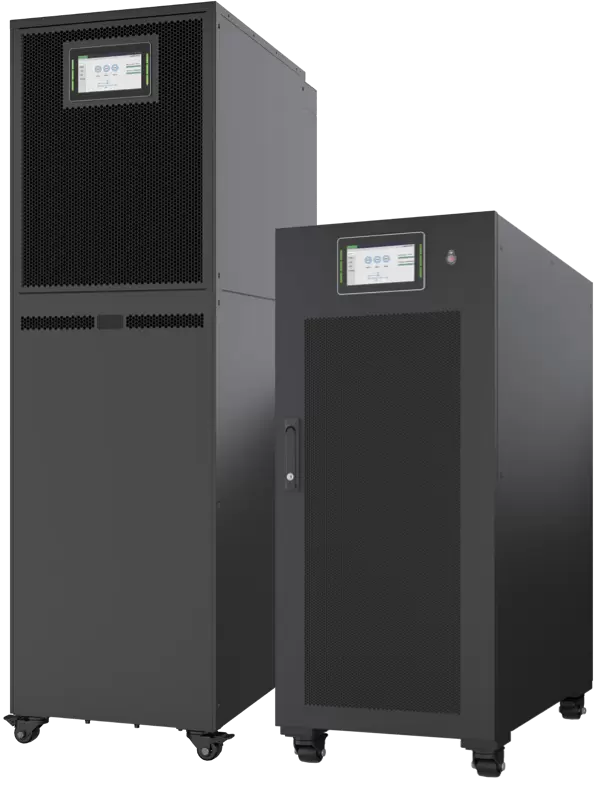

ACT Series 10~200kVA 3-phase Tower UPS Internal 7-9Ah modular battery strips
Power range
rang e 10~200 kVA
Operation
3P/3P, 3P/1P,1P/1P, Online double conversion
Characteristics
- 7 inch touch LCD with IoT functions .
- High power density, small volume.
- High reliability and environmental adaptability.

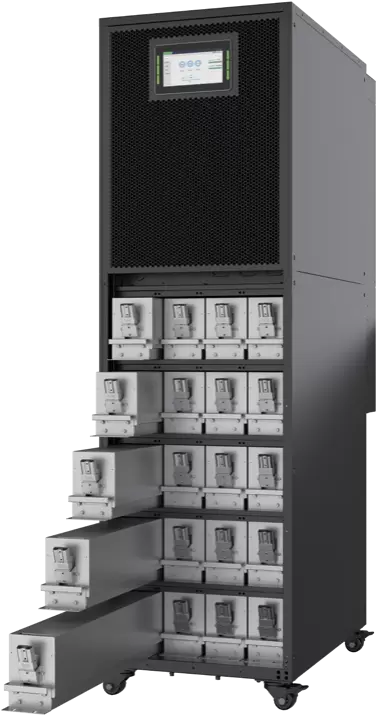

- Optional full metal battery strips, with internal batteri es capable of configuring up to 20 pcs battery strips.
- Full metal battery strips(Optional)
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
| Rate Power | 10kVA | 20kVA | 30kVA | 40 kVA | |||
| Main input | Input | 3P5W (3P+N+PE) | |||||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC (L-N) | ||||||
| Rate Freq. | 50/60Hz | ||||||
| Input PF | >0.99 | ||||||
| Current distortion | THDi<2% | ||||||
| Voltage range | 304 478VAC(L-L)full load ; 304 228VAC (L-L) power derate from 1 00% to 50% | ||||||
| Freq. range | 40-70Hz | ||||||
| Battery | Rate voltage | ±120VDC | ±240VDC | ||||
| Model | UPS with internal batteries ,12 VDC /7~9 Ah | ||||||
| Internal BAT Quantity | UPS for external batteries , Settable | ||||||
| External BAT | Battery strips | ||||||
| Charging capacity | Depend on external battery, 40PCS (default, 30-50 PC S, selceted) | ||||||
| Charging accuracy | Max. 50%*Pout | Max. 20%*Pout | |||||
| ±1% | |||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||
| Voltage range | Range: -40%- +25% , Settable, default -2 0% +15% | ||||||
| Frequency range | 50/60Hz , Settable : ±1Hz , ±3Hz , ±5Hz | ||||||
| Inverter | Rate voltage | 380/400/415VAC(L-L) ; 220/230/240VAC( L-N) | |||||
| Rate Freq. | 50/60Hz | ||||||
| Output PF | 1 | ||||||
| Voltage accuracy | ±1.0% | ||||||
| Output THDu | <1% ( linear load ) ,<5% (non-linear load) | ||||||
| Overload | 110%,1 hour ; 125%,10 mins ; 150%,1 min ; >150%,200ms | ||||||
| Frequency accuracy | 0.1% | ||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | ||||||
| Slew rate | Settable , 0.5Hz/S-3Hz/S , default 0.5Hz /S | ||||||
| Crest factor | 3:1 | ||||||
| Phase Accuracy | 120°±0.5° | ||||||
| System | Efficiency | Up to 97% | Up to 96.8% | ||||
| Display | LED + 7 inch touch LCD | ||||||
| Certification - Safety | IEC62040-1, IEC60950-1 | ||||||
| Certification- EMS IP degree | IEC62040-2 ; IEC61000-4-2(ESD) ; IEC61000-4-3( RS) ; IEC61000-4-4 (EFT) ; IEC61000-4-5 (Surge) | ||||||
| Configuration | IP20 | ||||||
| Option | USB, RS232, RS485, Dry contact, Air fil ter, Cold start | ||||||
| SNMP card, AS400 card, Parall el kit | |||||||
| 0-40 c ( operation ) ; -25 ℃ ~70 c ( storage ) ; 0-95% ( Humidity , non - condensing ) | |||||||
| Dimension (W*D*H) mm | Internal BAT | 400*861*783 | 500*800*1350 | ||||
| External BAT | 250*745*556 | 250*728*650 | |||||
| Weight ( kg ) | Internal BAT | 67 | 68 | 70 | 87 | ||
| (No include batteries) | 30.8 | 31.8 | 32.35 | 66 | |||
| Model | TT060EB-160P | TT100EB-200P | / | ||||||
| TT 060 EL | TT 100 EL | TT 120 EL | TT 150 EL | TT 200 EL | |||||
| Rate Power | 60kVA | 100kVA | 120kVA | 150kVA | 200kVA | ||||
| Main input | Input | 3P5W (3P+N+PE) | |||||||
| Rate Voltage | 380/400/415VAC(L-L) ; 220/230/240VAC( L-N) | ||||||||
| Rate Freq. | 50/60Hz | ||||||||
| Input PF | >0.99 | ||||||||
| Current distortion | THDi<2% | ||||||||
| Voltage range | 304 478VAC(L-L)full load ; 304 228VAC (L-L) power derate from 1 00% to 50% | ||||||||
| Freq. range | 40-70Hz | ||||||||
| Battery | Rate voltage | ±240VDC | |||||||
| Model | Internal BAT | UPS with internal batteries ,12 VDC /7~9 Ah | |||||||
| External BAT | UPS for external batteries , Settable | ||||||||
| Internal BAT Quantity External BAT Charging capacity Charging accuracy | Battery strips | ||||||||
| Depend on external battery, 40PCS (default, 30-50 PC S, selceted) | |||||||||
| Max. 20%*Pout | |||||||||
| ±1% | |||||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||||
| Voltage range | Range: -40%- +25% , Settable, default -2 0% +15% | ||||||||
| Frequency range | 50/60Hz , Settable : ±1Hz , ±3Hz , ±5Hz | ||||||||
| Inverter | Rate voltage | 380/400/415 VAC (L-L) 220/ 230/240VAC(L-N) | |||||||
| Rate Freq. | 50/60Hz | ||||||||
| Output PF | 1 | ||||||||
| Voltage accuracy | ±1.0% | ||||||||
| Output THDu | <1%(linear load),<5%(non-linear load) | ||||||||
| Overload | 110%,1 hour ; 125%,10 mins ; 150%,1 min ; >150%,200ms | ||||||||
| Frequency accuracy | 0.1% | ||||||||
| Synchronize window | Settable , ±0.5Hz-±5Hz , def ault ±3Hz | ||||||||
| Slew rate | Settable , 0.5Hz/S-3Hz/S , default 0.5Hz /S | ||||||||
| Crest factor | 3:1 | ||||||||
| Phase Accuracy | 120°±0.5° | ||||||||
| System | Efficiency | Up to 96.8% | |||||||
| Display | LED + 7 inch touch LCD | ||||||||
| Certification - Safety | IEC62040-1, IEC60950-1 | ||||||||
| Certification- EMS IP degree | IEC62040-2 ; IEC61000-4-2(ESD) ; IEC61000-4-3( RS) ; IEC61000-4-4 (EFT) ; IEC61000-4-5 (Surge) | ||||||||
| Configuration | IP20 | ||||||||
| Option | USB, RS232, RS485, Dry contact, Air filter,Cold start | ||||||||
| SNMP card, AS400 card, Parall el kit | |||||||||
| 0-40 c ( operation ) ; -25 ℃ ~70 c ( storage ) ; 0-95% ( Humidity , non - condensing ) | |||||||||
| Dimension (W*D*H) mm | Internal BAT | 500*800*1350 | 500*900*1700 | / | |||||
| External BAT | 250*728*650 | 380*950*900 | 500*900*1300 | ||||||
| Weight ( kg ) | Internal BAT | 87 | 113 | / | |||||
| (No include batteries) | 72 | 91 | 100 | 143 | |||||
