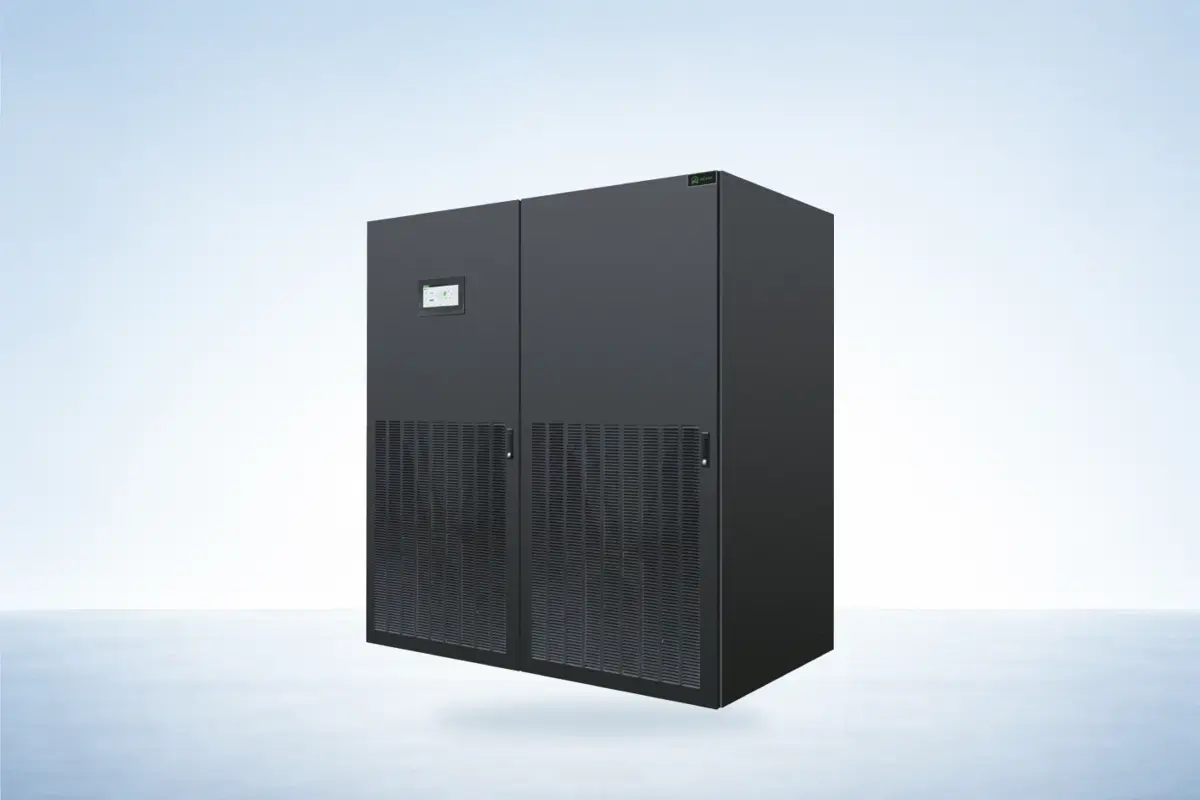

MateAir Single-System Large Room Precision Cooling
MateAir Single-System Series 25-60kW is a large-room precision cooling solution designed for medium and large data centers, communication rooms, server rooms and other mission-critical environments.
The series provides stable temperature and humidity control with flexible airflow arrangements and a cooling capacity range of 25–60 kW.
Flexible airflow:Upflow, plenum-supply and downflow configurations are available for different room layouts.
Efficient cooling:An inverter refrigeration system, electronic expansion valve and EC fans continuously adjust cooling output according to the actual room load.
Intelligent control:A 10-inch capacitive touchscreen displays operating status, temperature and humidity trends, alarms and system parameters.
Group management:High-speed CAN communication supports centralized management of 64 or more units in the same area.
Flexible configuration:Cooling-only, heating, humidification and low-temperature configurations can be selected according to project requirements.
Final cooling capacity, airflow arrangement, outdoor unit, heating, humidification and control options are selected according to the room heat load and operating environment.
Applications
Data Parameters
| Indoor Model (MA Series) | 025 | 030 | 035 | 040 | 045 | 050 | 060 |
|---|---|---|---|---|---|---|---|
| Total Cooling Capacity (kW) | 27.1 | 30.6 | 36.3 | 41.2 | 45.3 | 51.2 | 60.2 |
| Sensible Cooling Capacity (kW) | 24.9 | 27.6 | 33.4 | 38.1 | 41.2 | 47.1 | 54.1 |
| Air Volume (m³/h) | 8550 | 9550 | 11100 | 12100 | 12550 | 13100 | 14000 |
| Compressor Type | DC Variable Frequency Compressor (Single System) | ||||||
| Compressor Number (pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Fan Type | High Efficiency EC Fans | ||||||
| Fan Number (pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| EEV | High Efficiency Electronic Expansion Valve | ||||||
| Refrigerant | R410A | ||||||
| Heating Capacity (kW) | 6 | 6 | 6 | 9 | 9 | 9 | 9 |
| Humidification Capacity (kg/h) | 5 | 5 | 5 | 10 | 10 | 10 | 10 |
| Power Supply Type | 380V / 3N~ / 50Hz | ||||||
| FLA (A) | 36.5 | 40.8 | 41.6 | 45.7 | 50.0 | 54.5 | 64.6 |
| Indoor Unit Weight (kg) | 320 | 325 | 350 | 370 | 370 | 470 | 470 |
| Dimension W × D × H (mm) | 900 × 995 × 1975 | 1100 × 995 × 1975 | |||||
| FA Series Outdoor Unit | |||||||
| Outdoor Model (Nominal Condition) | FA035APN | FA040APN | FA050APN | FA058APN | FA068APN | FA068APN | FA090APN |
| Power Supply Type | 380V / 3N~ / 50Hz | ||||||
| Outdoor Weight (kg) | 126 | 135 | 140 | 150 | 166 | 166 | 185 |
| Dimension W × D × H (mm) | 1376 × 980 × 738 | 1576 × 1274 × 748 | 1776 × 1274 × 748 | 1976 × 1274 × 738 | 2576 × 1274 × 748 | ||
