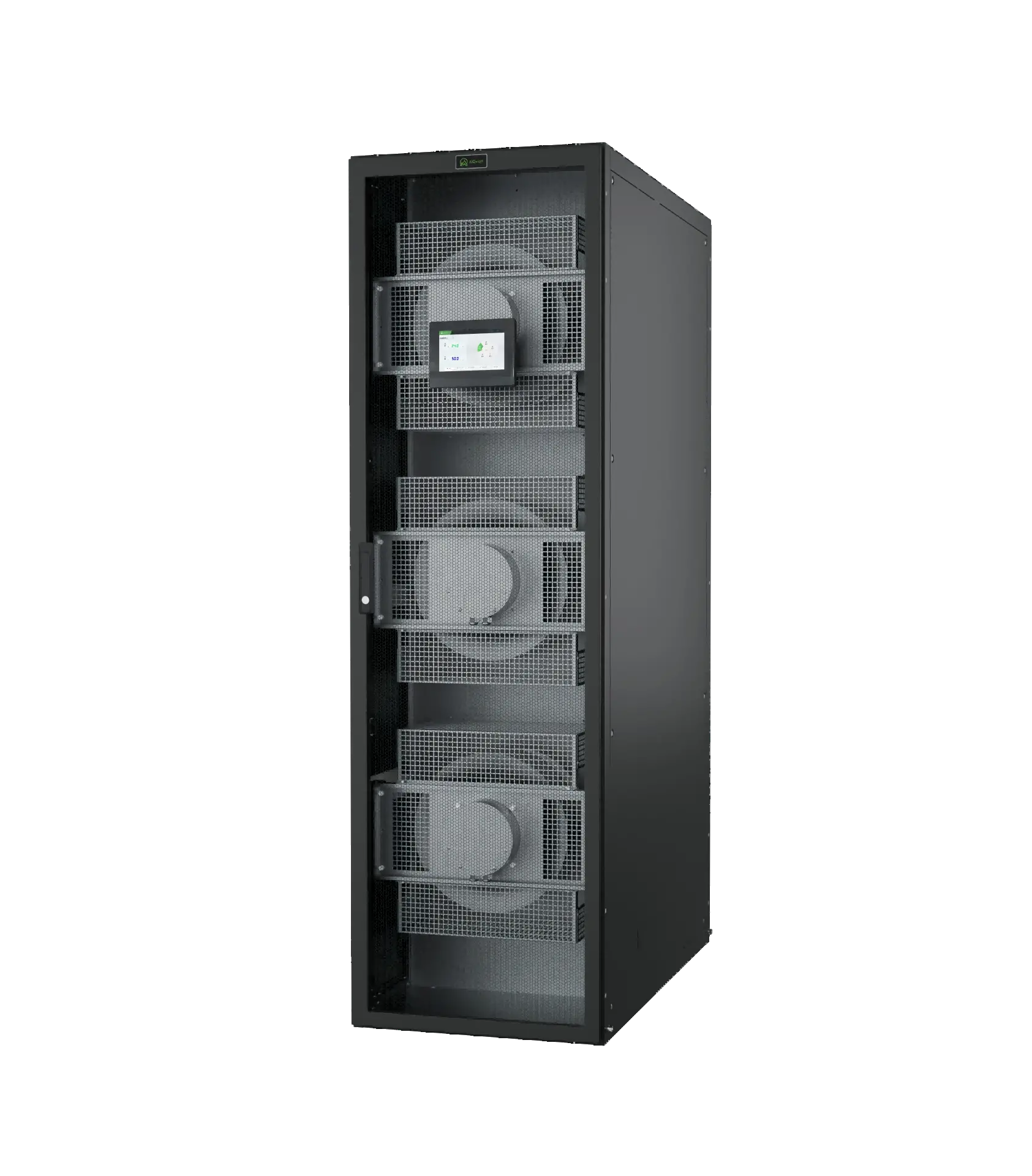

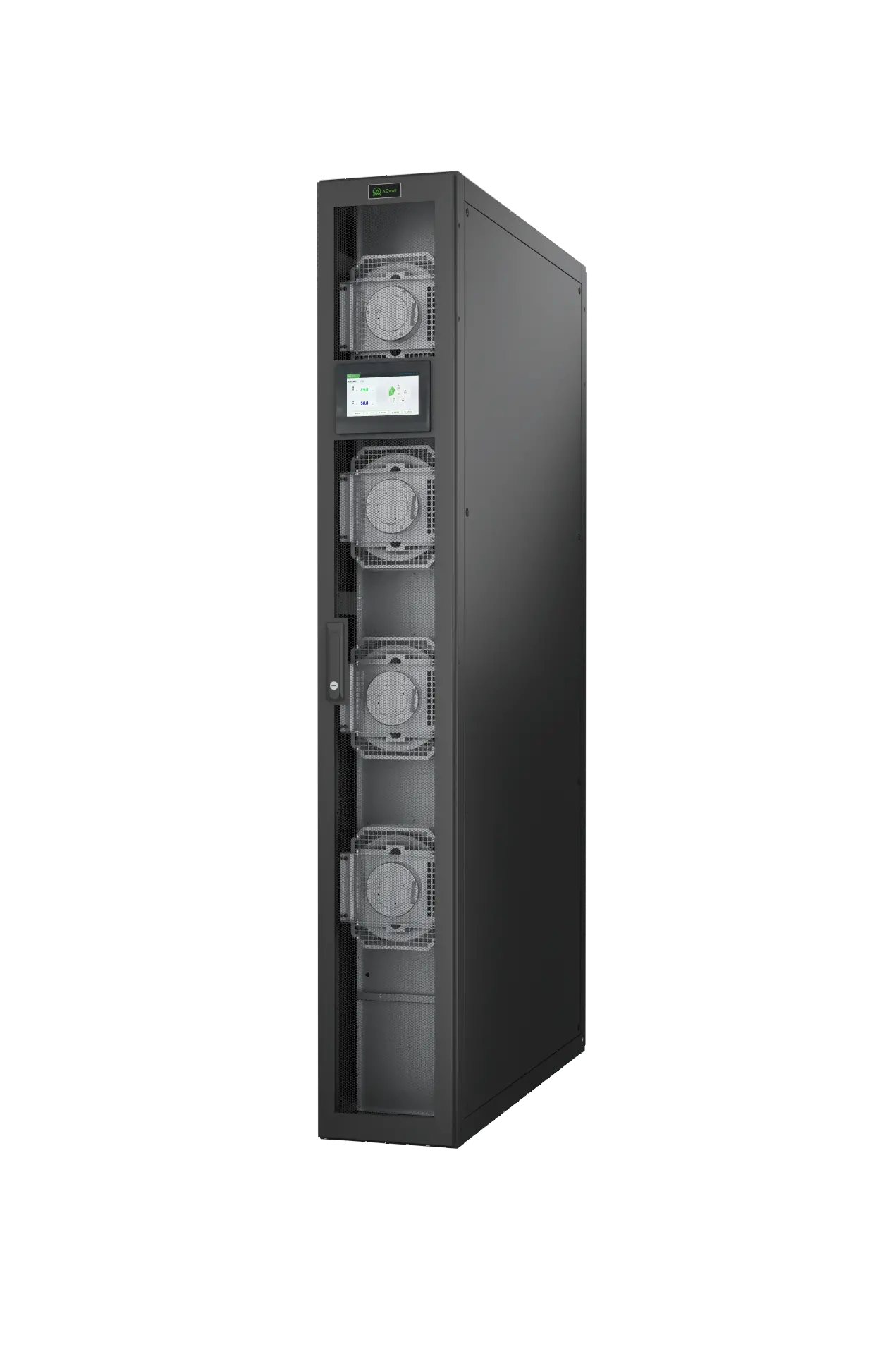

HyperAir Series In-row Precision Cooling
HyperAir HA Series is an air-cooled, variable-frequency in-row precision cooling solution designed for modular data centers, high-density server rooms, and other mission-critical IT environments.

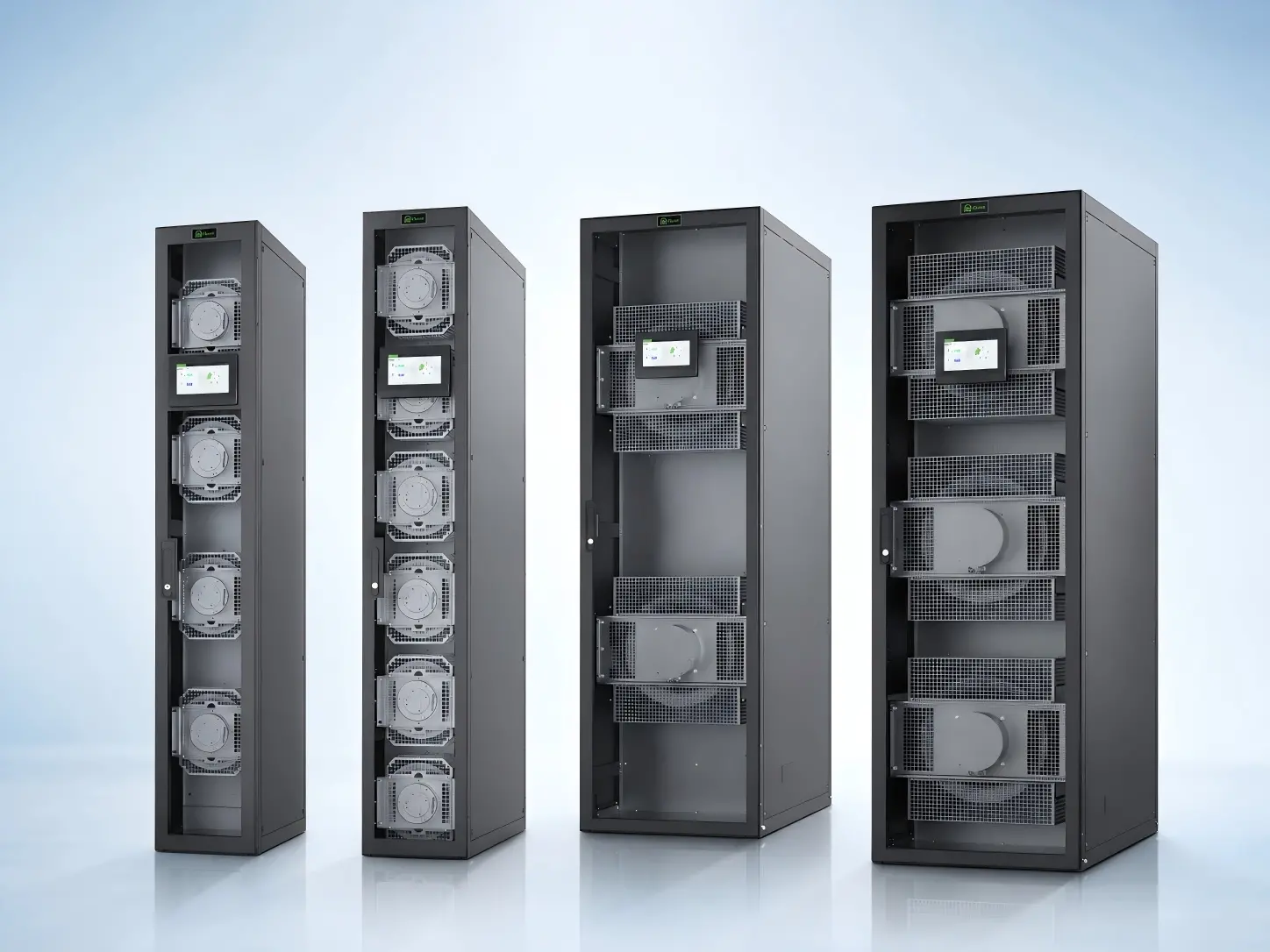

Flexible capacity: Six models provide 12.6–63.0 kWcooling capacity with 300 mm and 600 mm cabinet-width options.
Variable-frequency efficiency: DC inverter compressors, EC fans, and electronic expansion valves continuously adjust output according to the actual heat load.
Intelligent control: A 7-inch color touchscreenprovides real-time monitoring, alarm management, parameter settings, and multi-unit group control.
Flexible configuration: Cooling-only and constant-temperature-and-humidity models are available according to project requirements.
Final cooling capacity, outdoor unit, airflow, piping, and control configuration are selected according to the project heat load and installation conditions.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
Technical Specifications
| System & Technology | |
| Product Type | Air-cooled variable-frequency in-row precision cooling |
| Indoor Unit Models | HA012 / HA025 / HA030 / HA040 / HA050 / HA060 |
| Compressor Type | DC variable-frequency compressor |
| Fan Type | High-efficiency EC fan |
| Expansion Valve | Electronic expansion valve |
| Refrigerant | R410A |
| Display | 7-inch HMI color touchscreen |
| Communication | CAN group control and RS485 communication, depending on model and configuration |
| Group Control | Centralized management of at least 64 units |
| Standard Power Supply | 380 V / 3N~ / 50 Hz |
| Indoor Operating Temperature | 18–45°C |
| Indoor Operating Humidity | 20–80% RH |
| Available Configurations | Cooling and dehumidification; heating and humidification available according to selected configuration |
| Pipe & Cable Entry | Top and bottom entry options |
Indoor Unit Model Comparison
| Indoor Unit | HA012 | HA025 | HA030 | HA040 | HA050 | HA060 |
|---|---|---|---|---|---|---|
| Total Cooling Capacity | 12.6 kW | 25.6 kW | 30.6 kW | 42.9 kW | 51.1 kW | 63.0 kW |
| Sensible Cooling Capacity | 12.6 kW | 25.6 kW | 30.6 kW | 42.9 kW | 51.1 kW | 63.0 kW |
| Airflow | 2,850 m³/h | 5,080 m³/h | 5,250 m³/h | 8,580 m³/h | 10,600 m³/h | 11,600 m³/h |
| Quantity of EC Fans | 4 | 6 | 6 | 2 | 3 | 3 |
| Heating Capacity | 3.0 kW | 4.5 kW | 4.5 kW | 6.0 kW | 6.5 kW | 6.5 kW |
| Humidifier Capacity | 3.0 kg/h | 3.0 kg/h | 3.0 kg/h | 3.0 kg/h | 3.0 kg/h | 3.0 kg/h |
| Single-Cooling FLA | 19.0 A | 23.2 A | 29.2 A | 30.1 A | 34.8 A | 43.8 A |
| Constant Temperature & Humidity FLA | 22.9 A | 27.9 A | 34.0 A | 37.6 A | 42.0 A | 51.0 A |
| Indoor Unit Dimensions | 300 × 1200 × 2000 mm | 300 × 1200 × 2000 mm | 300 × 1200 × 2000 mm | 600 × 1200 × 2000 mm | 600 × 1200 × 2000 mm | 600 × 1200 × 2000 mm |
| Indoor Unit Net Weight | 200 kg | 225 kg | 235 kg | 305 kg | 335 kg | 350 kg |
| Conventional Outdoor Unit | FA020APN | FA040APN | FA046APN | FA058APN | FA078APN | FA090APN |
