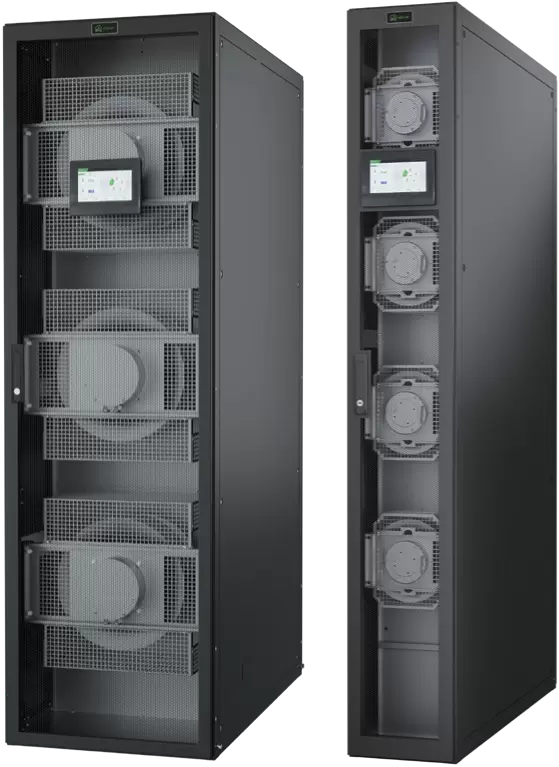

HyperAir Series In-row Precision Cooling
Operation
- with variable frequency, intelligent output, and safe .
- Suitable for data cente rs, it ensures a reliable and secure environment for critical infrastructure and precision equipment.
- Features High Efficiency Efficient DCVF compressor and EC fan provide a stepless dynamic cooling output.
- The cooling efficiency is enhanced by a special return air temperature design.
- R410A refrigerant, inte rnational standard, environmentally friendly.
- Simple 7" HMI colour touchscreen for easy and real-time display of information.
- CAN communication protocol, supports control of at least 64 units.
- The intelligent system automatically adjusts cooling output.
- Hierarchical password permissions, facilitating and maintena nce management.
- Reliable High-strength structur al frame, sturdy and durable.
- Strict quality control of components t o ensure quality.
- Rigorous testing and va lidation to guarantee operational safety.
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
| Indoor Unit(HA Series) | 012 | 025 | 030 | 040 | 050 | 060 |
| Total Cooling Capacity (kW) | 12.6 | 25.6 | 30.6 | 42.9 | 51.1 | 63.0 |
| Sensible Cooling Capacity (kW) | 12.6 | 25.6 | 30.6 | 42.9 | 51.1 | 63.0 |
| Air Flow Rate m3 /h | 2850 | 5080 | 5250 | 8580 | 10600 | 11600 |
| Fan Type | EC Fan | |||||
| Quantity of Fans （ pcs ） | 4 | 6 | 6 | 2 | 3 | 3 |
| Compressor Type | DC Variable Frequency Compres sor | |||||
| Expansion Valve Type | Electronic Expansion Valve | |||||
| Refrigerant Type | R410A | |||||
| Heating Capacity (kW) | 3.0 | 4.5 | 4.5 | 6.0 | 6.5 | 6.5 |
| Humidifier Capacity (kg/h) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Power Supply | 380V/3N~50Hz | |||||
| Single Cooling Power Supply FLA (A) | 19.0 | 23.2 | 29.2 | 30.1 | 34.8 | 43.8 |
| Constant Temperature and H umidity Power Supply FLA (A) | 22.9 | 27.9 | 34.0 | 37.6 | 42.0 | 51.0 |
| Net Weight (kg) | 200 | 225 | 235 | 305 | 335 | 350 |
| Dimension: W×D×H (mm) | 300*1200*2000 | 300*1200*2000 | 300*1200*2000 | 600*1200*2000 | 600*1200*2000 | 600*1200*2000 |
| Outdoor Unit Model (Nominal condition) | FA020APN | FA040APN | FA046APN | FA058APN | FA078APN | FA090APN |
| Quantity of Fans （ pcs ） | 2 | 1 | 1 | 1 | 2 | 2 |
| Net Weight （ kg ） | 49 | 135 | 139 | 150 | 176 | 185 |
| Dimension:W×D×H (mm) | 830*330*1245 | 1376*980*738 | 1576*1274*748 | 1776*1274*748 | 2176*1274*738 | 2376*1274*748 |
| Outdoor Unit Model （ Nominal condition ） | FA046AVN | FA058AVN | FA068AVN | FA078AVN | FA090AVN | FA098AVN |
| Quantity of Fans （ pcs ） | 1 | 1 | 1 | 1 | 1 | 1 |
| Net Weight （ kg ） | 140 | 150 | 166 | 176 | 186 | 196 |
| Dimension: W×D×H (mm) | 1098*1098*1684 | 1098*1098*1684 | 1098*1098*1774 | 1098*1098*1774 | 1298*1098*1774 | 1298*1098*1774 |
