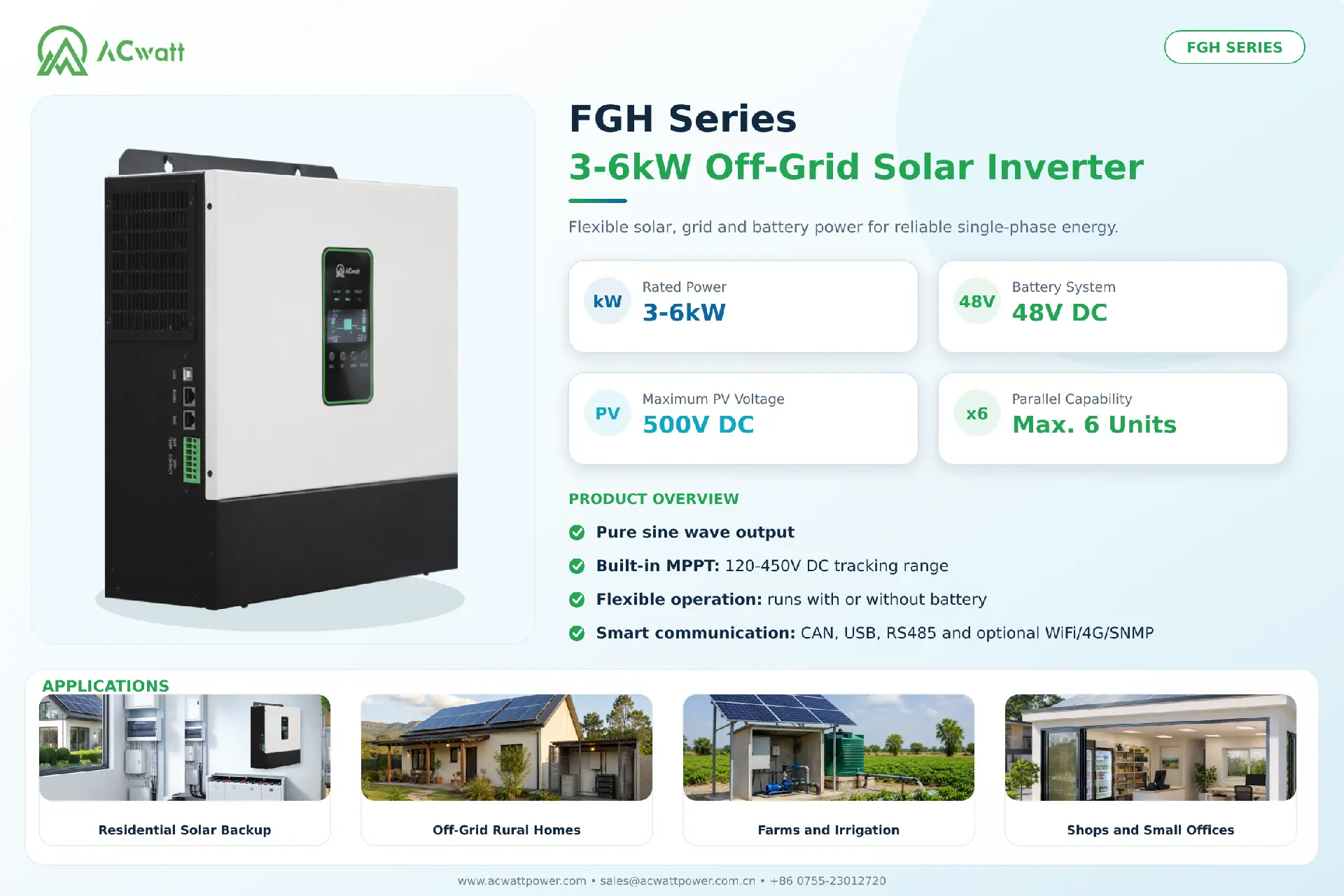

FGH Series 3–6kW Off-Grid Solar Inverter
FGH Seriesis a single-phase off-grid solar inverter combining inverter, MPPT solar charging and AC battery charging in one compact unit.
Available in 3 kW, 3.6 kW, 5 kW and 6 kWmodels for residential, commercial and remote power applications.

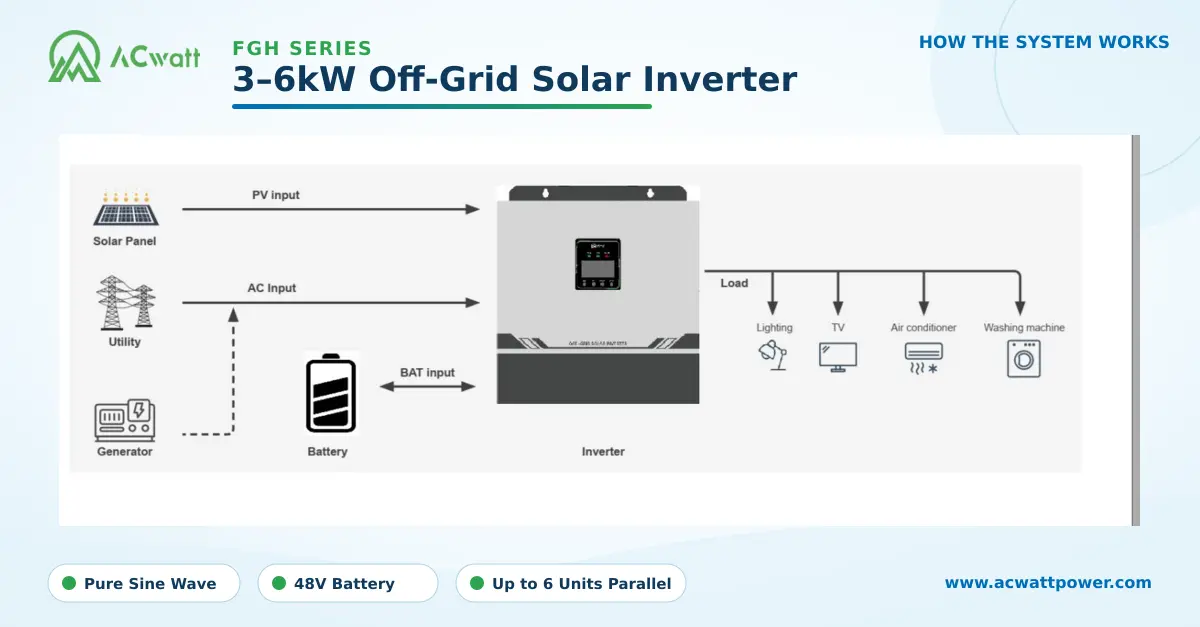

Flexible energy management:Solar, utility and battery priority modes adapt the system to different power conditions.
Reliable power output:Pure sine wave output supports household appliances, office equipment and compatible motor loads.
Battery and monitoring flexibility:Supports 48 V lead-acid and lithium batteries, with CAN, RS485, USB, dry contact and optional wireless monitoring.
Scalable operation:Up to 6 unitscan operate in parallel for higher system capacity.
PV array, battery capacity and charging configuration are selected according to the project load.
Applications

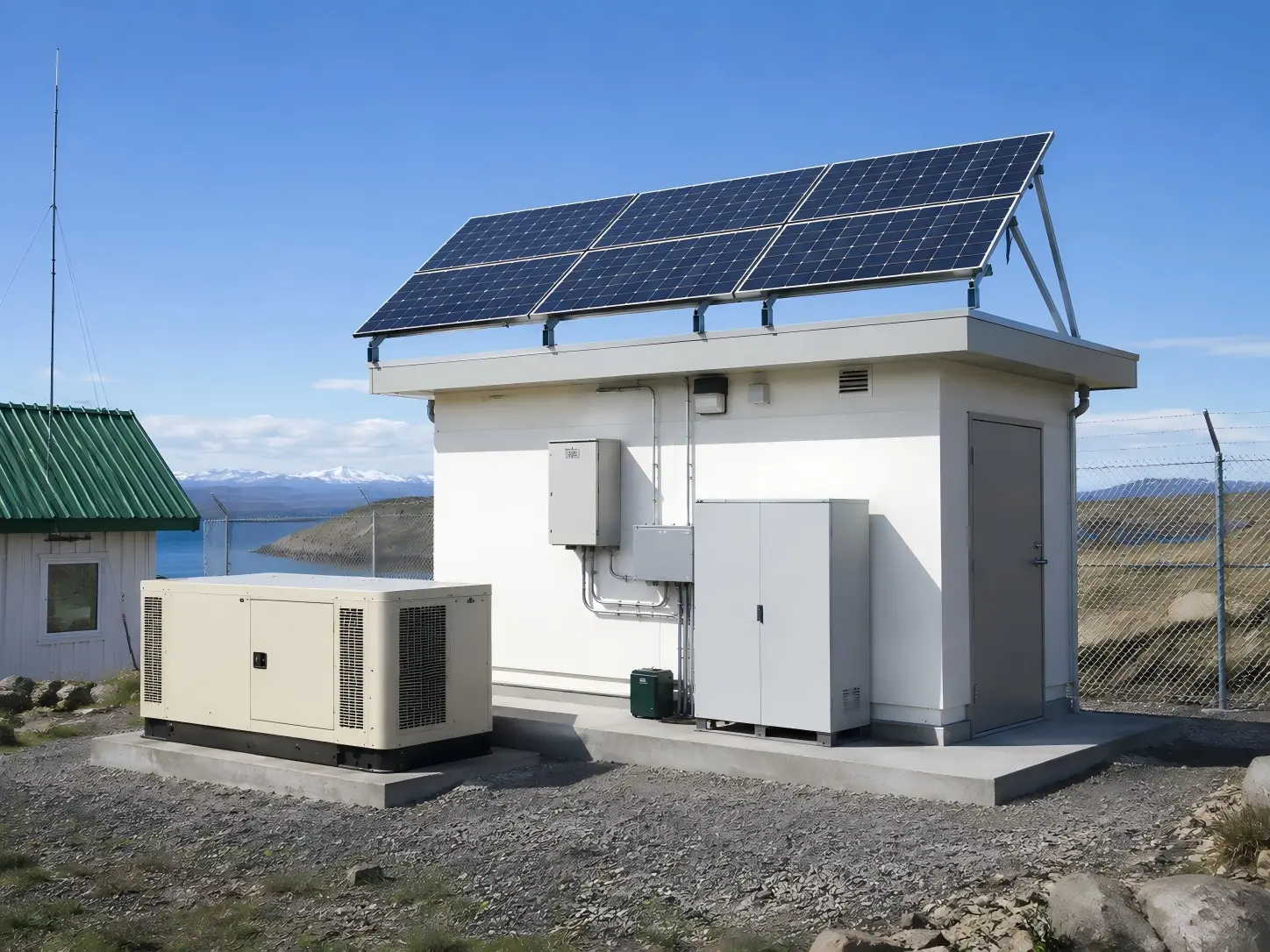

Remote

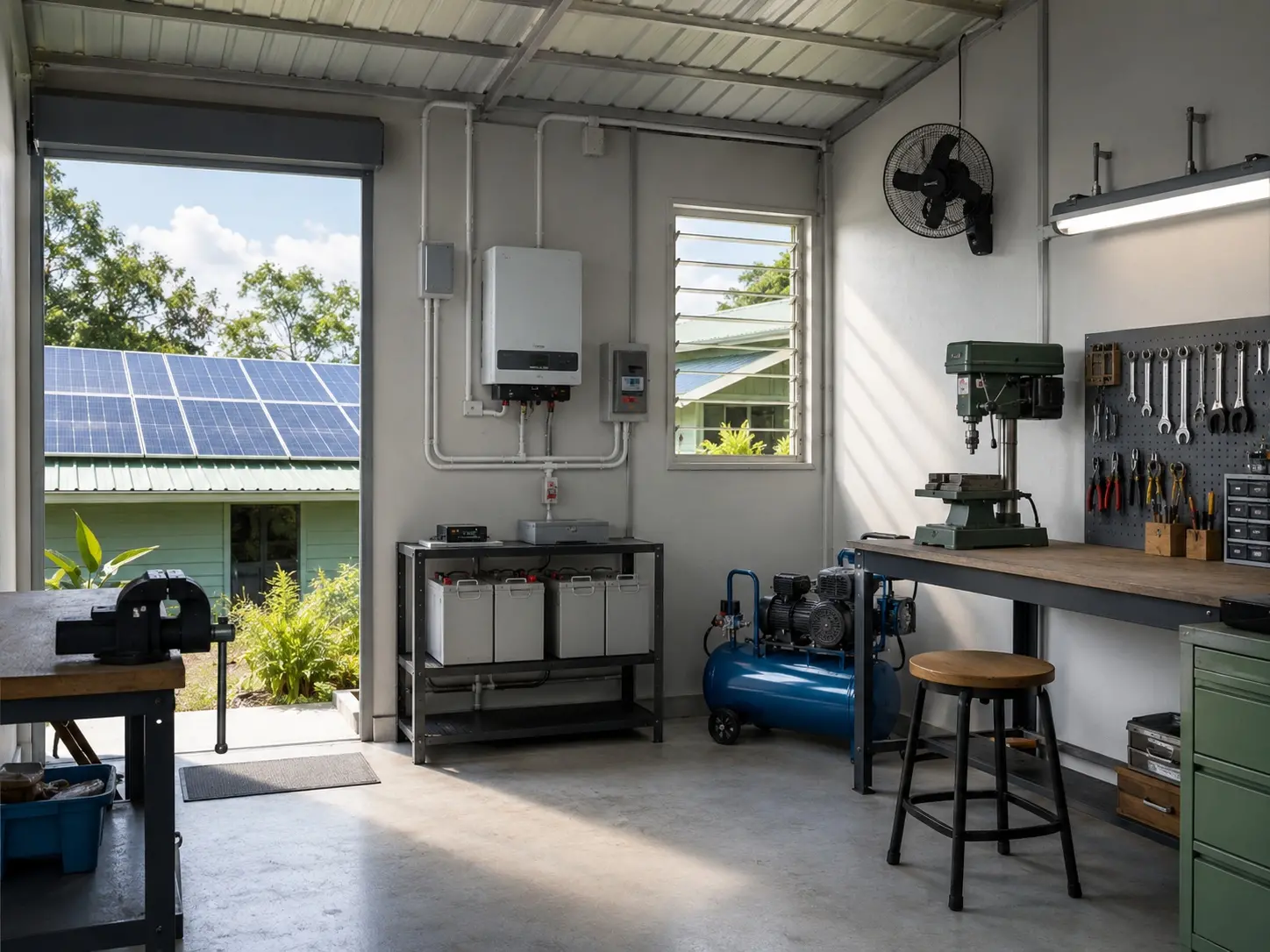

Workshops
Small offices
Home

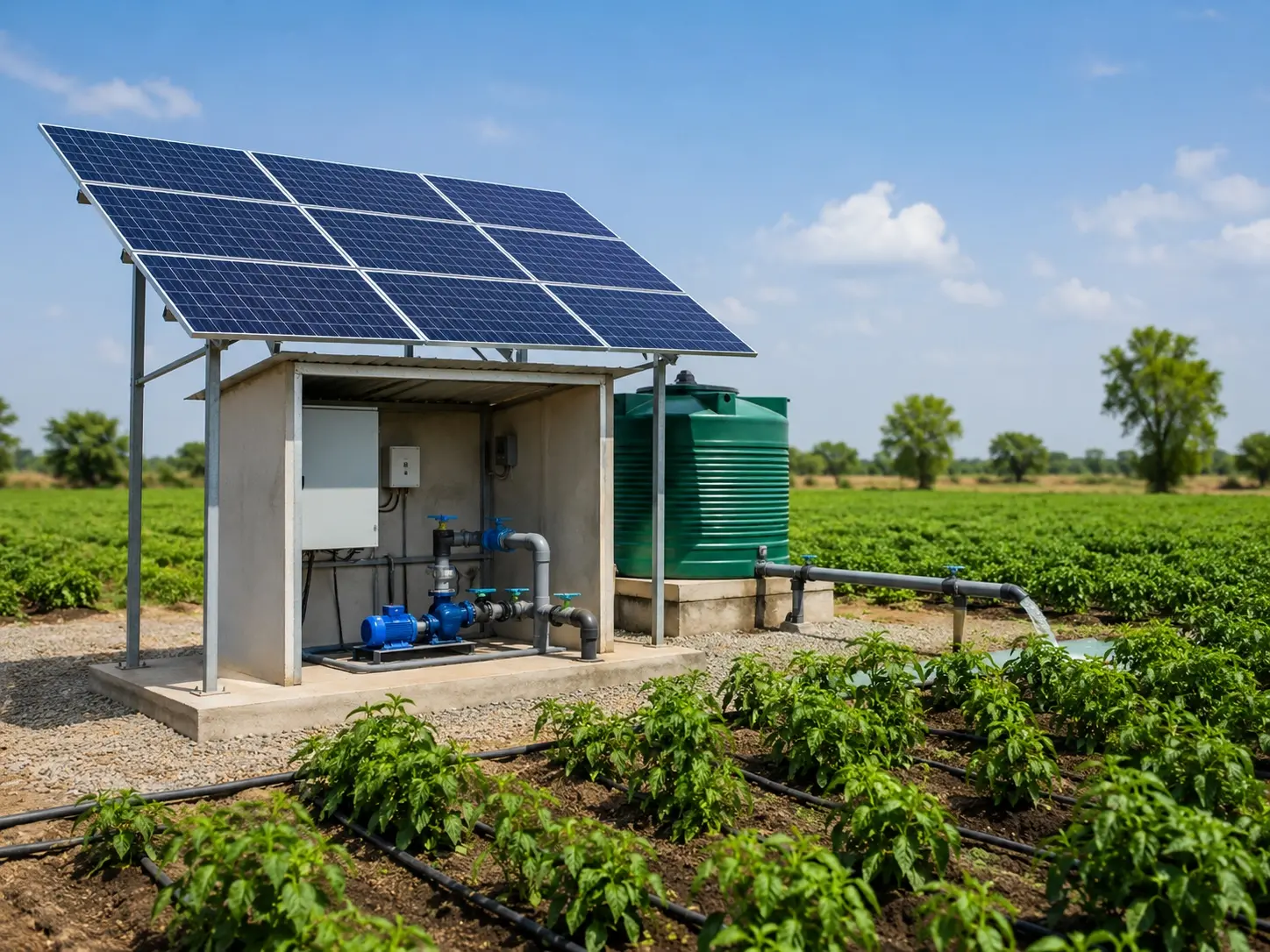

Farm
Data Parameters
| Model | FGH03 | FGH03.6 | FGH05 | FGH06 |
|---|---|---|---|---|
| AC Mode | ||||
| Rated Input Voltage | 220/230VAC | |||
| Input Voltage Range | 170-280VAC (For Personal Computers);
90-280VAC (For Home) 100% load @170VAC; 80% load @150VAC; 60% load @120VAC; 40% load @90VAC | |||
| Frequency | 50Hz / 60Hz (Auto Detection) | |||
| Frequency Range | 45-55±0.2Hz (50Hz); 55-65±0.2Hz (60Hz) | |||
| Efficiency | >94% | |||
| Transfer Time (Bypass and Inverter) | 10ms (Typical) | |||
| Maximum Bypass Overload Current | 20A | 40A | ||
| Inverter Mode | ||||
| Output Voltage Waveform | Pure Sine Wave | |||
| Parallel Capability | Max. 6 Units | |||
| Rated Output Power | 3kVA/3kW | 3.6kVA/3.6kW | 5kVA/5kW | 6kVA/6kW |
| Power Factor | 1 | |||
| Rated Voltage | 230VAC (200/208/220/240VAC Settable) | |||
| Output Voltage Regulation | ±2% | |||
| Output Frequency Range | 50Hz ±0.3Hz / 60Hz ±0.3Hz | |||
| Maximum Efficiency | >93% | |||
| Overload Protection | 105% ≤ load <150%: 10s; 150% ≤ load <200%: 5s; Short Circuit: 200ms | |||
| Peak Power | 6kVA | 7.2kVA | 10kVA | 12kVA |
| Loaded Motor Capability | 2HP | 2HP | 4HP | 5HP |
| Bypass Breaker Specifications | 20A | 40A | ||
| Rated Battery Input Voltage | 48V (Minimum Starting Voltage 44V) | |||
| Battery Voltage Range | 40VDC-60VDC ±0.6VDC | |||
| Power Saving Mode | Load ≤40W | |||
| AC Charging | ||||
| Battery Type | Lead Acid or Lithium Battery | |||
| Maximum Charge Current | 60A | 80A | 100A | |
| Charge Voltage | 40-60VDC | |||
| Circuit Breaker Specifications | 40A | |||
| PV Charging | ||||
| Maximum PV Open Circuit Voltage | 500VDC | |||
| PV Operating Voltage Range | 120-500VDC | |||
| MPPT Voltage Range | 120-450VDC | |||
| Battery Voltage Range | 40-60VDC | |||
| Maximum PV Input Power | 4.2kW | 5kW | 6kW | |
| Maximum PV Input Current | 18A | 22A | 27A | |
| PV Charging Current | 0-60A | 0-80A | 0-100A | |
| Certified Specifications | ||||
| Certification | CE (IEC 62109-1), EN61000, C2, IP20 | |||
| Altitude | <2000m | |||
| Environment | -15℃ to 50℃ (Operating Temperature); -25℃ to 60℃ (Storage Temperature); 5% to 95% (Humidity Range) | |||
| Noise | ≤60dB | |||
| Communication Interface | CAN / USB / RS485 / WIFI / GPIO / Dry Contact / SNMP | |||
| Size (L*W*D) | 360mm × 360mm × 125mm | |||
| Weight (kg) | 8 | 11 | ||
