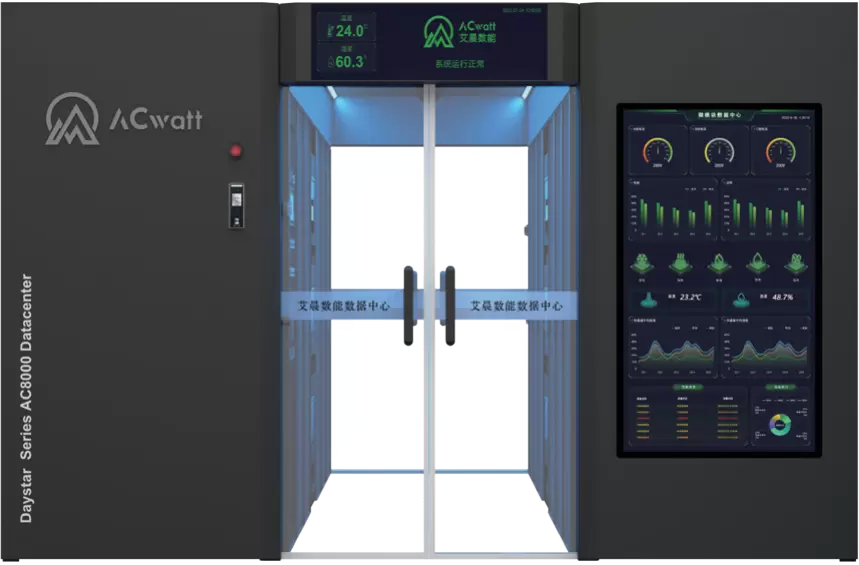

Daystar AC8000 series Modular Data Center
Power range
design. Integrate supply, UPS, precisi on cooling, cabinet, closed channel, a nd dynamic environment monitoring systems into one . Equipped with abundant sampling sensors, real-time unified monitoring and management, realizing automatic control and intelligent operation and maintenance. Improve the reliability, availability, and maintainability of the data center. Application Large data centers and campus data centers, Banking, Financial an d Insurance, Education, Healthcare, Manufacturing, Retail and Wholesale, Transportat ion. Features High Reliability Prefabricated installation, redundant design of system components, improving overall system reliability. Intelligent Management Supporting SMS, phone, email, sound and l ight alarms, and friendly HMI : remote APP , local LCD , WEB . High Efficiency Equipped with high-efficiency modular UPS, integrated distribution design, In -row AC refrigeration, closed channels, and reduced energy consumption. Simple Installation Standardized engineering design, quick insta llation modular design, hot-swappable , easy to install and maintain. Model AC8000 System Dimensions(W*D*H)mm 3600*L*2600 ACwatt 2025 Ver 4.29
Operation
monitoring and management, realizing automatic control and intelligent and maintenance. Improve the reliability, availability, and maintainability of the data center. Application Large data centers and campus data centers, Banking, Financial an d Insurance, Education, Healthcare, Manufacturing, Retail and Wholesale, Transportat ion. Features High Reliability Prefabricated installation, redundant design of system components, improving overall system reliability. Intelligent Management Supporting SMS, phone, email, sound and l ight alarms, and friendly HMI : remote APP , local LCD , WEB . High Efficiency Equipped with high-efficiency modular UPS, integrated power distribution design, In -row AC refrigeration, closed channels, and reduced energy consumption. Simple Installation Standardized engineering design, quick insta llation modular design, hot-swappable , easy to install and maintain. Model AC8000 System Dimensions(W*D*H)mm 3600*L*2600 ACwatt 2025 Ver 4.29
Applications
Government
Finance
IT
Education
Transportation
Broadcasting
Medical
Energy
Data Parameters
| System | Dimensions(W*D*H)mm | 3600*L*2600 |
| IT Rate Power/Cabinet | 3~12kW | |
| Door | Automatic sliding doors/Manual sliding doors | |
| Lighting | LED lighting+RGB | |
| Door Security | Fingerprint + IC card + face ID | |
| Ambient Temp. | 0-45°C | |
| Ambient Humidity | 10-95% | |
| Protection Level | IP20 | |
| Installation | Installing on concrete floor or raised floor | |
| Cabinet | Dimensions(W*D*H)mm | 600/800 * 1200/1100 * 2000 /2200 |
| Space Available | 42U | |
| Cables Entry | Top and bottom | |
| PDM | Input Way | Single input MCCB/Dual input ATS |
| Rate Input | 380/400/415Vac,50/60Hz | |
| Total Input Current | 63~400A | |
| SPD | Class B/C (optional) | |
| Distribution type | Integrated UPS power distribution cabinet | |
| UPS | Rate Capacity | Built-in maximum 180kVA, ex ternal 200kVA or more |
| Input Frequency | 50/60 ， +-5Hz | |
| Output PF | 1 | |
| Battery | Built-in rack battery cabinet or external battery cabinet | |
| PDU | Standard Type | IEC socket*2pcs, 16 ports (12*10A+4* 16A) |
| Cooling | Cooling Capacity | 12.5~60KW （ In-row ） |
| Refrigeration method | forced air cooling | |
| Refrigerant | R410A | |
| Monitoring | HMI Interface | 23.8 Inch touch all in-one PC |
| System Function | WEB remote access/centralized monitoring of power, enviro nment, video, access control system | |
| Monitoring Parts | Smoke/Temp.& humidity/Water leakage/Infrared detector/W ebcam/Door security/Fire fighting | |
| Alarms | Email/SMS alarm (optional)/Sound and light alarm(optional)/ Phone voice(op tional)/Phone APP(optional) |
